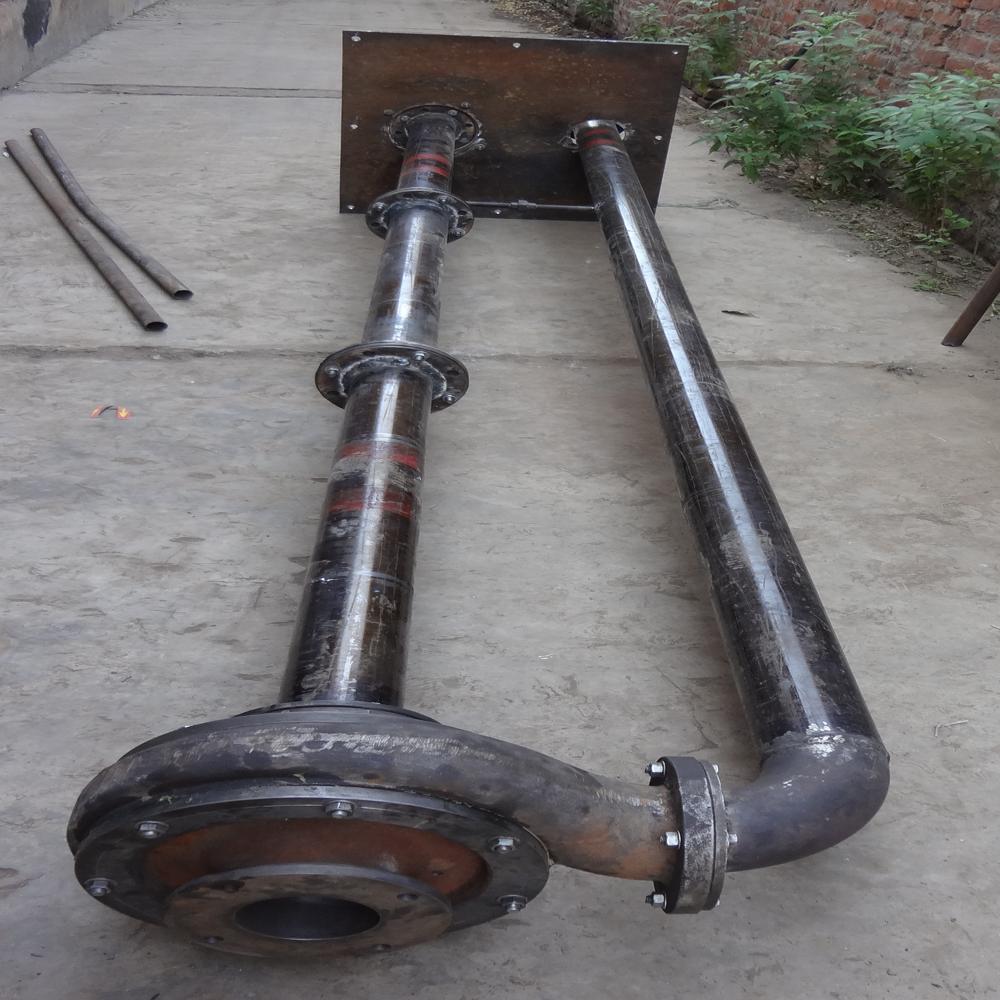

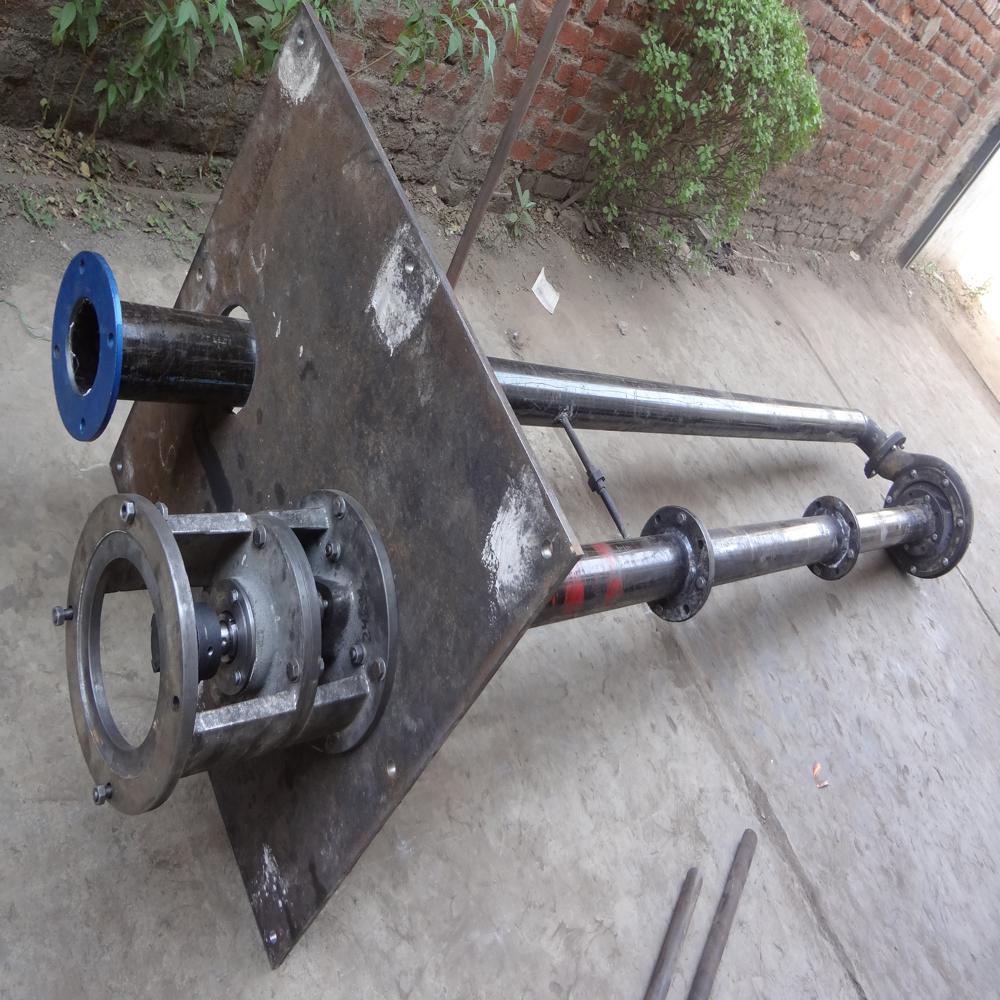

JACKETED VERTICAL CENTRIFUGAL PUMP

Product Description

TECHNICAL SPECIFICATIONS:-

Pump Type: -Vertical Centrifugal

Long Shaft Pump

Pump Make: -TOSS.

Pump Model: - SVSP- 50/260

No Of Stages: -Single Stage.

Suction and delivery sizes: -50 X 50MM.

Require Discharge capacity: - 30M3/HR

Discharge Head: 17 meter.

Shut Of Head: - 20 meter.

Type of Impeller:- Close Impeller.

Sealing:-Sealess

MATERIAL OF CONSTRUCTION: - CAST

IRON

Body, Impeller ,Stuffing box and

Bearing Housing are of

standard cast iron

Bush:-Cft bush

Sleeve:-SS 410,

Plate, Pipe are of Mild Steel

PUMP LENTH 1500 MM

                                                                                                                      MOTOR SPECIFICATIONS: -

7.5 HP X 1400 RPM, 415 Volt, 3 Phase, 50 Hz, CROMPTON Make IE-2, IP-55 Protection, AC Supply, Vertical Flange Mounted ,NON-Flame Proof Motor.

                                                                                                                          SCOPE OF SUPPLY: -

Vertical Centrifugal Type Bare Shaft Pump  With Base Frame
