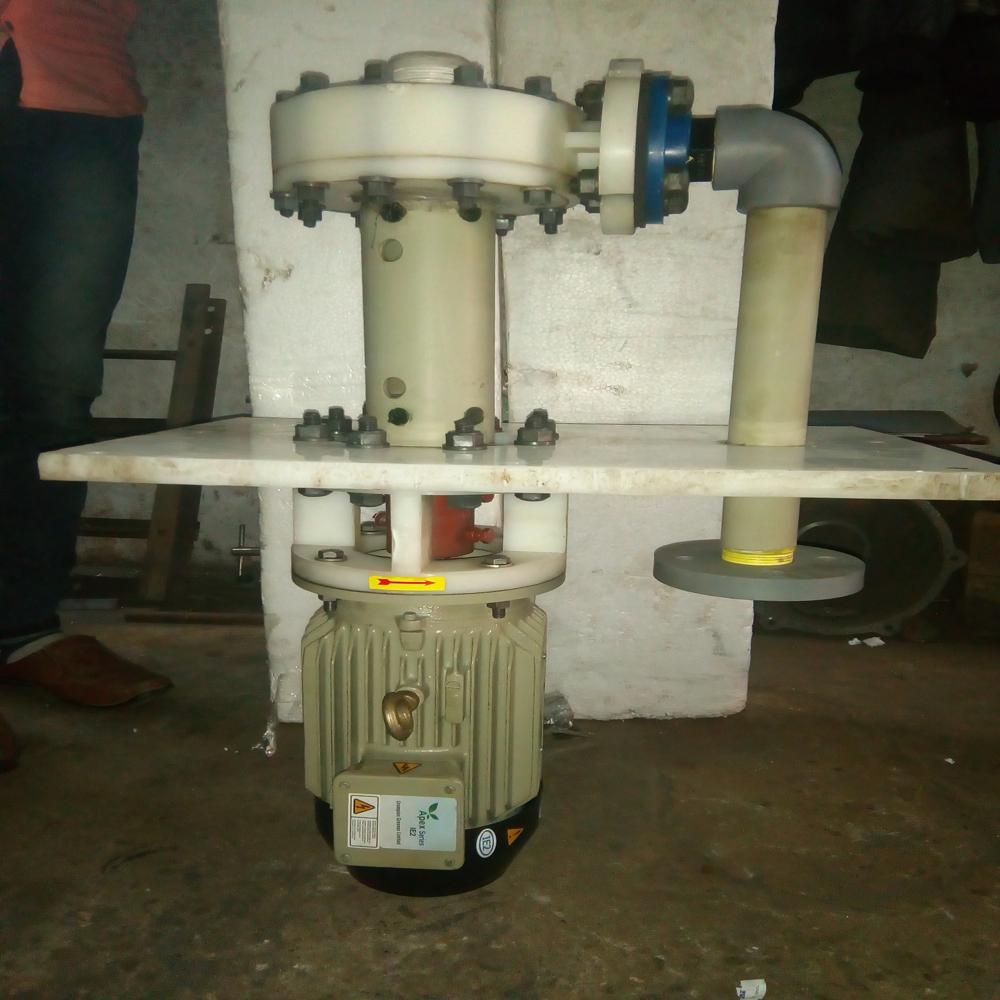

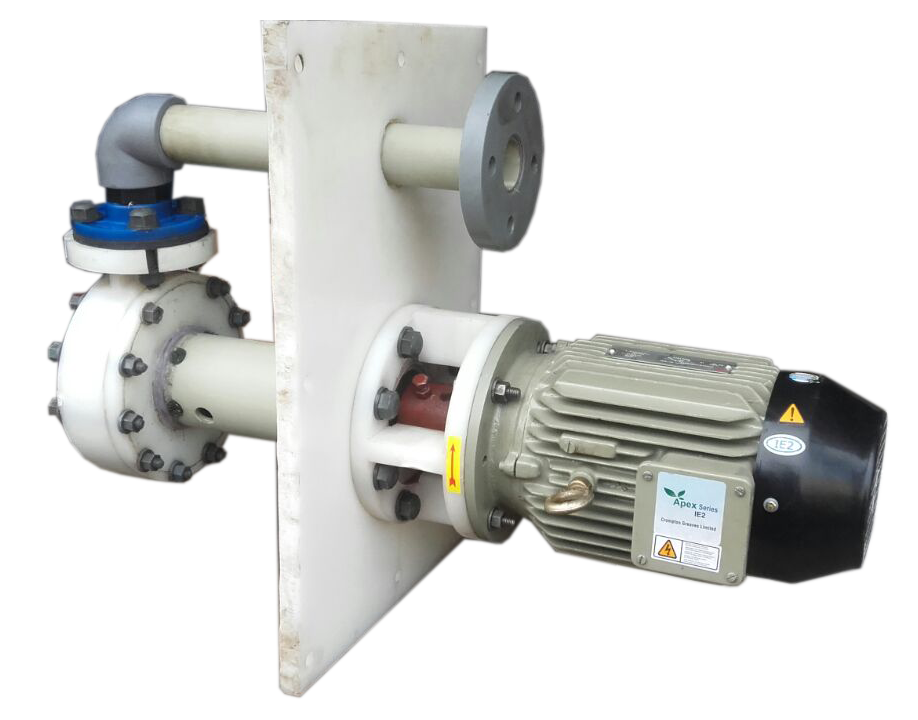

Pp Vertical Sump Pump , 2 HP

60000.0 INR/Number

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Pp Vertical Sump Pump , 2 HP Price And Quantity

Minimum Order Quantity 1 Number
Price 60000.0 INR/Number

Product Description

TECHNICAL SPECIFICATIONS: -Pump Type: -VERTICAL SUMP PUMPPump Make: -TOSS.Pump Model: - SV-40X40X120No Of Stages: -Single Stage.Delivery sizes: - 1.5 BSP THREADRequire Discharge capacity: - 10 M3/HRDischarge Head: - 12 metersType of Impeller: - OD-120 MM Semi OpenPump length : - 350 MMSealing:- GLAND
MATERIAL OF CONSTRUCTION: -MOC PP BODY IMPELLER ST.BOX SHAFT, SLEEVE COLAM PIPE , DELIVERY PIPE IN PP BEARING HOUSING CI AND MOUNTING PLATE MS
MOTOR SPECIFICATIONS: - 2 HP X 2800 RPM, 415 Volt, 3 Phase, 50 Hz,, AC Supply, Horizontal Foot Mounted, NON-Flame Proof Motor.
SCOPE OF SUPPLY: -PP VERTICAL SUMP PUMP AND MOTOR
