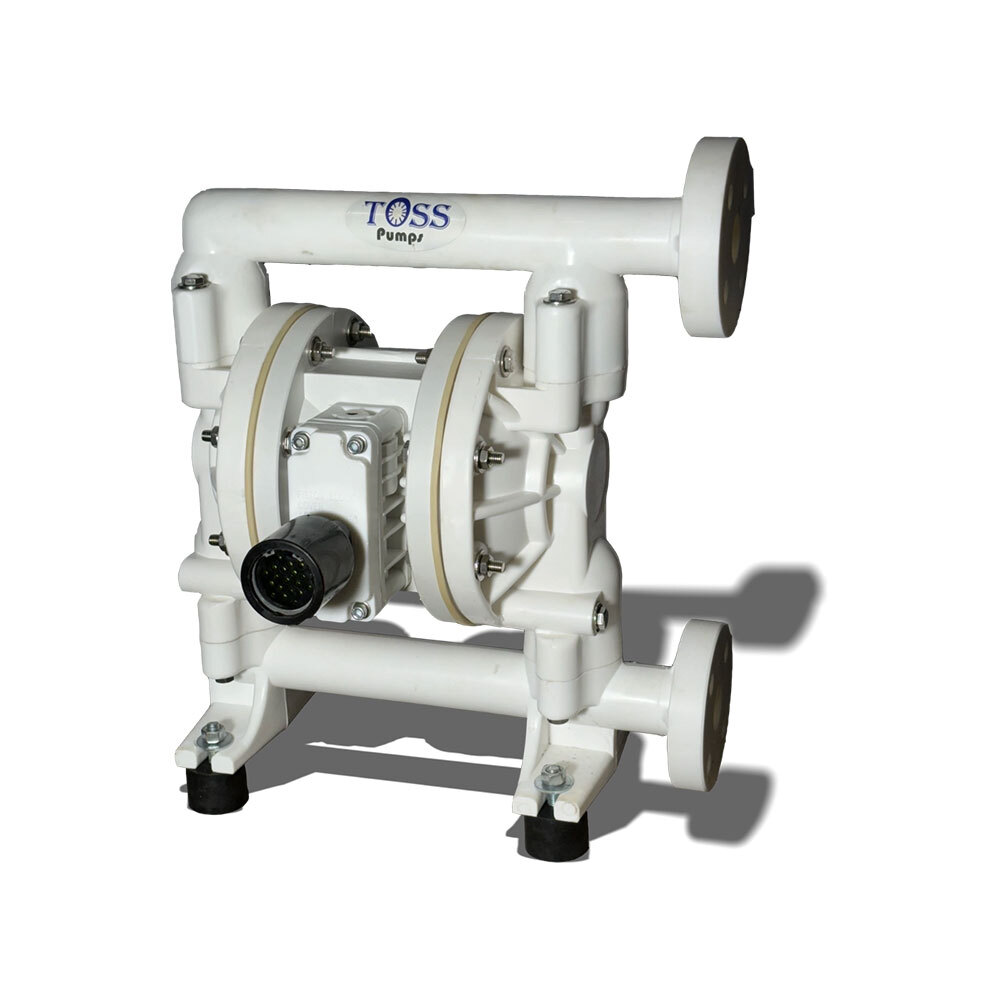

AODD Pumps

AODD Pumps Price And Quantity

• Minimum Order Quantity 1 Piece
• Price 15000 INR/Piece

AODD Pumps Product Specifications

• Suction Type Dry and Wet Suction
• Voltage Not Applicable (Air Operated)
• Priming Self Priming
• Fuel Type Compressed Air
• Capacity Up to 30 m3/hr
• Pump Type AODD (Air Operated Double Diaphragm)
• Structure Double Diaphragm Pump
• Working Temperature -10C to 100C
• Noise Level Below 85 dB at standard operation
• Pressure Up to 7 Bar (100 PSI)
• Theory Air Operated Double Diaphragm
• Discharge Pressure Up to 7 Bar
• Seals Type PTFE / EPDM / Viton (Depending on Model)
• Max Suction Up to 5 meters (Dry lift)
• Flow Rate Up to 500 LPM (Depending on Model)
• Application Other
• Caliber 2 inch
• Inlet/Outlet 2 Inch ANSI Flange
• Features Dry-run capability, Self-priming, Can handle solids, Corrosion resistance
• Control System Manual / Optional Pneumatic Automation
• Head Size Up to 80 meters
• Usage Other
• Material Polypropylene, PVDF, Aluminum, Stainless Steel (Varies per Model)
• Power Pneumatic (Air Supply)
• Speed Variable - Air Regulated
• Mounting Type Base Mounted / Portable
• Standard ANSI, ISO (Depending on Model)

• Max Liquid Temperature 100C (Depending on Diaphragm Type)
• Diaphragm Material Santoprene, PTFE, Neoprene (Depending on Model)
• Max Solid Passage Up to 6 mm
• Dimensions (LxWxH) Approx. 320 x 240 x 450 mm
• Air Inlet Size 1/2 inch NPT
• Air Consumption Up to 670 L/min at maximum flow
• Net Weight Approx. 25-30 kg (Depending on Construction Material)

AODD Pumps Trade Information

• Supply Ability 10 Piece Per Week
• Delivery Time 7 Days
