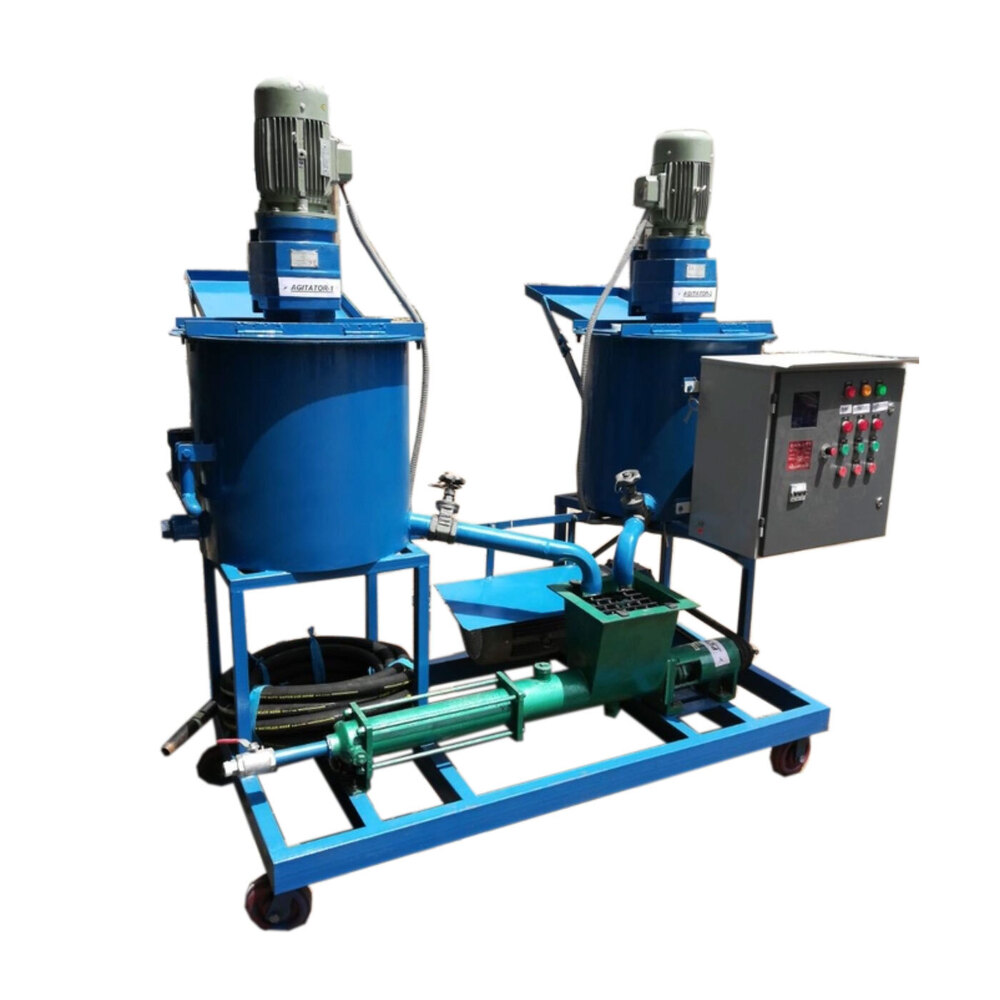

Grout Pump

Name: Grout Pump
Brand: RELIABLE ENGINEERS
Price: 220000 INR
Availability: InStock

220000 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50 Hz
Voltage 415V (Three Phase)
Caliber Customizable
Discharge Pressure Max 12 Bar
Fuel Tank Capacity Not applicable (Electric driven)
Speed 1440 RPM
Max Suction 6 meters
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Grout Pump Price And Quantity

Minimum Order Quantity 1 Piece
Price 220000 INR/Piece

Grout Pump Product Specifications

Discharge Pressure Max 12 Bar
Usage Other
Fuel Tank Capacity Not applicable (Electric driven)
Speed 1440 RPM
Frequency 50 Hz
Voltage 415V (Three Phase)
Application Other
Caliber Customizable
Pump Type Grout Injection Pump (Electrically Operated)
Capacity Designed for 300-500 Kg/Hour output
Features Dual tank for continuous supply, Heavy-duty, Easy mobility, Corrosion resistant
Control System PLC/Panel based manual/automatic controls
Inlet/Outlet 1.5 (Inlet), 1 (Outlet) Flanged/Threaded
Working Temperature Up to 40C
Pressure Upto 12 Bar
Noise Level Less than 80 dB
Power 3 HP to 5 HP electric motor driven
Material Mild Steel (MS) with corrosion-resistant coating
Flow Rate 30-100 LPM (Liters Per Minute) depending on model
Suction Type Direct suction
Seals Type Mechanical Seal
Priming Self-priming
Max Suction 6 meters
Structure Mounted on trolley with mixing and storage tanks
Theory Positive Displacement (Screw Pump/Progressive Cavity Pump)
Fuel Type Electric
Standard As per IS and International Standards
Head Size Maximum 30 meters
Mounting Type Portable Trolley Mounted

Level Indicator Tank Levels visible for easy monitoring
Operating Weight Approx. 180 to 250 Kg
Hopper Design Twin hopper for continuous mixing and feeding
Electrical Protection Overload and short circuit protected
Maintenance Low, with easily accessible parts
Pump Body Finish Epoxy Painted
Optional Accessories Extra suction hose, discharge hose, flow meter
Mixing Tank Capacity 80 to 200 liters
Agitator Type Heavy-duty Paddle type
Portability Provided with castor wheels for easy movement

Grout Pump Trade Information

Supply Ability 10 Piece Per Month
Delivery Time 7 Days

Product Description

We have two options Diaphragm type and piston type:

Diaphragm type Grout Pump-We have various Option in diaphragm type grout pump with various pressure ranges, various tank sizes and various pipe sizes according to work.

Model	Pressure (Psi)	Size (INCH)	Flow
GTHD-40	40	0.5 * 0.5	3 LPM
GTHD-140	140	0.5 * 0.5	3 LPM
GTHD-210	210	0.5 * 0.5	3 LPM

Output pressure	15 bar (210 Psi) max
Suction size	19 mm
Delivery size	12 mm
Nozzle	Taper nozzle (8 -18mm)
Discharge	5 liters/min free flow
Mixing unit	Equipment can be attached with a 50- liter compact mixing unit sold at extra cost

Specification

Note: Full Customizations is Available

Pump	Screw Type Pump with Agar and Hopper
Stator	Nitrile Rubber
Rotor	SS304
Tank Size	200 Liters (1 or 2 as per requirement)
Agitator	110 Rpm with two Blades Mixing
Pressure Gauge	Inline pressure Gauge
Tank MOC	MS Tank with Valves and Drain plugs.
Max Flow	7 m3/hr. or 120 lpm
Max pressure	12-20 kg/cm2
Stater or Control Panel	Optional as Your required

Efficient Grout Mixing and Injection

Engineered with a positive displacement screw pump mechanism, this unit ensures precise and consistent grout injection even in demanding conditions. The dual hopper design supports continuous mixing, boosting productivity while the paddle-type agitator keeps your grout mix homogenous throughout operation.

Safety and Durability Focused

The pump features robust electrical protection against overloads and short circuits, enhancing operator and equipment safety. Constructed using mild steel with an epoxy coating, it resists corrosion and meets international and IS standards for reliable, long-term deployment even in challenging environments.

User-Friendly Operation and Maintenance

With easily accessible parts and intuitive manual or PLC-based controls, this portable grout pump streamlines setup and operation. The castor wheels and trolley design facilitate effortless movement, while the clear tank level indicator allows continuous monitoring to prevent process interruptions.

FAQ's of Grout Pump:

Q: How does the portability of the grout pump benefit onsite operations?

A: The grout pump is mounted on a portable trolley with castor wheels, allowing easy transportation around the site. This mobility minimizes downtime and ensures quick positioning for various tasks without heavy lifting equipment.

Q: What is the process for mixing and injecting grout with this pump?

A: Grout materials are loaded into the dual hoppers, where the heavy-duty paddle agitator ensures thorough mixing. The system provides continuous supply, drawing grout directly via the suction mechanism for injection. Settings can be adjusted manually or automatically through the PLC control panel.

Q: What maintenance requirements does this grout pump have?

A: The low-maintenance design features easily accessible components for straightforward inspection and servicing. Routine checks include monitoring seals, hoses, and cleaning the mixing tanks, supported by the epoxy finish that resists corrosion.

Q: What electrical protections are in place for this equipment?

A: The unit is equipped with protection against overload and short circuits, safeguarding both the motor and operator. It is powered by a 415V (Three Phase) supply, further enhancing operational reliability.

Q: How can users monitor and control grout levels during operation?

A: The grout pump is fitted with a clear tank level indicator, allowing operators to monitor grout volume in real time. This visibility helps maintain consistent operation and prevents unexpected interruptions during mixing and pumping.

Q: Where can this grout pump be effectively used?

A: This pump is suitable for construction sites, tunneling, foundation grouting, and other infrastructure projects across India, meeting both IS and international standards. Its portable design and corrosion-proof build allow deployment in diverse working environments.
