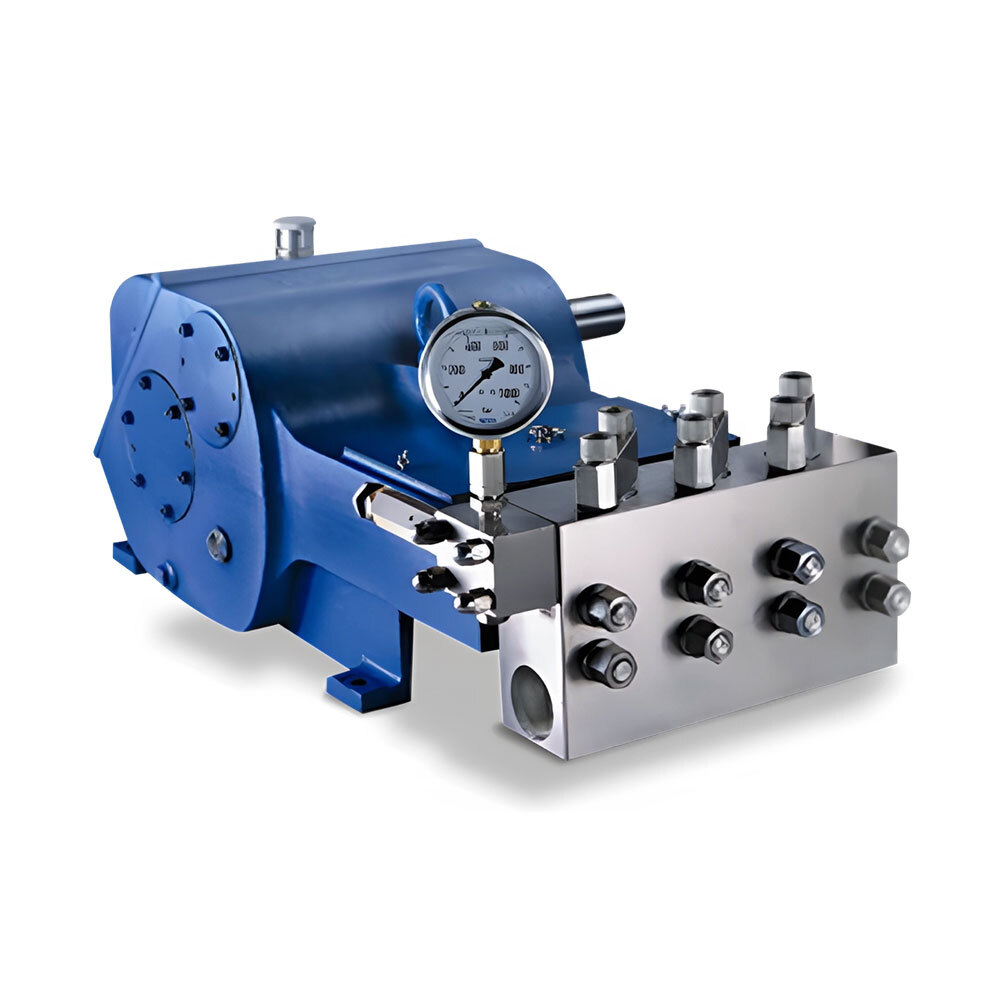

High Pressure Triplex Plunger Pump

Get a Price/Quote

Product Details:

Working Temperature Up to 80C
Control System Optional - Manual/Automatic Pressure Control
Theory Triplex Plunger Pump
Max Suction Up to 8 m
Discharge Pressure 100-700 bar (depends on configuration)
Frequency 50 Hz / 60 Hz
Inlet/Outlet Customizable (typically BSP/ANSI/Flanged)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

High Pressure Triplex Plunger Pump Price And Quantity

Minimum Order Quantity 1 Piece

High Pressure Triplex Plunger Pump Product Specifications

Power 2 HP to 30 HP (varies by model)
Pump Type High Pressure Triplex Plunger Pump
Standard ISO 9001 / CE / API 674 (as applicable)
Seals Type High Pressure Hydraulic Seals
Noise Level Less than 85 dB(A) at 1 meter
Voltage 380V / 415V / 220V (customizable)
Usage Other
Frequency 50 Hz / 60 Hz
Material Stainless Steel / Alloy Steel / Cast Iron (wetted part SS 304/316 often)
Inlet/Outlet Customizable (typically BSP/ANSI/Flanged)
Discharge Pressure 100-700 bar (depends on configuration)
Flow Rate 10-100 LPM (varies by model)
Head Size Customizable as per application
Structure Horizontal Triplex Reciprocating
Fuel Type Electric (mainly electric motor driven)
Features High Efficiency, Durable Construction, Easy Maintenance, Reliable Sealing
Mounting Type Base Plate Mounted
Speed 300-1450 RPM (adjustable as per need)
Pressure Maximum up to 700 bar (may vary by model)
Caliber 10-50 mm (as per model)
Fuel Tank Capacity Not Applicable (electric driven)
Priming Self/Manual Priming (as per application)
Working Temperature Up to 80C
Max Suction Up to 8 m
Capacity 10-100 LPM (varies with size/config)
Control System Optional - Manual/Automatic Pressure Control
Theory Triplex Plunger Pump
Suction Type Positive Displacement Suction

Cooling Type Air or Water cooled Crankcase (optional)
Plunger Material Solid Ceramic/Stainless Steel
Gasket Material Nitrile / Viton / PTFE (as per liquid compatibility)
Protection IP55 / IP65 Motor protection available
Piston Stroke 25 - 80 mm (model dependent)
Overload Protection Available with Motor starter units
Lubrication System Splash/Forced lubrication (oil bath or pressure lubricated design)
Weight Varies from 70 kg to 350 kg (depends on model)

High Pressure Triplex Plunger Pump Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

Feature

Extra Strong, Heavy Duty Power frame ensures uninterrupted smooth long life
Wide variety of valves are available to suit different pumping fluids and applications
Three piece liquid end block design avoids any possibility of block cracking
Spring loaded Plunger / Special Gland Packing always ensures leak free pumping service
Reversible valve seats double the normal life of valve seats thus become long lasting quite smooth operation
Totally dependable, reliable and efficient performance
Easy to maintain, simple to repair and nominal maintenance cost

Application

High pressure, High discharge.
Versatile use for Jetting / Cleaning / Cutting / Blasting / Hydro testing.
Highly efficient low power consumption

MODEL	FLOW	MAX BAR(KG/CM2)	PRESSURE (PSI)	H.P.	RPM
RMJSN-35	10	80	440	2	2880
RSW-08/12S	13	80	590	2	1440
RSW-11/18S	18	100	725	3	1440
RSW-12/11S	11	120	725	3	1440
RSW-13/11T	11	130	725	3	1440
RSW-15/11S	11	150	1160	4	1440
RSW-18/12T	12	180	1740	5	1440
RSW-22/18T	18	220	1885	7.5	1440
RSW-18/12S	12	180	2175	5	1440
RSW-25/18T	18	250	2175	10	1440
DFRSW-7.5T	12	130/150	2610	7.5	1440
DFRSW-5T	13	100/130	3625	5	1440
RSW-22	18	30	440	1.5	800
RSW-30	36	40	590	3	800
RSW-50	50	50	725	5	800
RSW-80	80	50	725	7.5	750
RSW-150	150	50	725	15	700

Advanced Engineering for Superior Performance

This Triplex Plunger Pump is designed with premier materials like stainless steel, solid ceramic, and high-pressure hydraulic seals, ensuring outstanding durability even under severe working conditions. The horizontal base-plate mounting design and forced or splash lubrication maintain smooth operation, while overload and motor protection boost equipment longevity and safety.

Customizable and Versatile By Design

With options for piston stroke, plunger material, cooling type, gasket compatibility, and inlet/outlet standards, these pumps cater to diverse industry requirements. Whether handling caustic chemicals, high-pressure cleaning, or fluid transfer, each unit adapts seamlessly to your process, thanks to its wide-ranging configuration flexibility.

Efficient and Quiet Operation

Despite generating pressures up to 700 bar, the pump's noise output remains below 85 dB(A) at a distance of one meter. Its self/manual priming capabilities, high efficiency rates, and easy-maintenance design minimize downtime and operational costs. The design ensures compliance with international standards like ISO 9001, CE, and API 674.

FAQ's of High Pressure Triplex Plunger Pump:

Q: How do I select the appropriate model for my application requirements?

A: Choose a model based on your required pressure (up to 700 bar), flow rate (10-100 LPM), inlet/outlet connection type, plunger material, and compatible gasket material according to your process fluid. Our technical team can support with sizing and configuration to ensure optimal performance for your intended use.

Q: What maintenance processes are involved for this pump?

A: Regular maintenance includes lubricant checks or changes (oil bath or pressure lubricated), inspection and replacement of gaskets and seals, and monitoring the plunger condition-especially if using abrasive or aggressive fluids. The pump's robust design facilitates straightforward access to components, making routine service simple.

Q: Where can this Triplex Plunger Pump be installed?

A: These pumps are suitable for installation in industrial plants, manufacturing facilities, service centers, and chemical processing units across India and internationally. Its base-plate mounting offers versatility for various operational setups. The pump can be customized for existing infrastructure as needed.

Q: When is forced lubrication recommended over splash lubrication?

A: Forced lubrication is ideal for continuous, high-speed, or high-load operations, ensuring all moving components are consistently lubricated under pressure. Splash lubrication suffices for moderate loads and intermittent use. Our team can advise the best system based on your usage profile.

Q: How does the protection system enhance pump reliability?

A: The IP55/IP65 motor protection guards against dust and water ingress, while integrated overload protection prevents motor damage during electrical surges or mechanical overloading. These features significantly extend the operating life and reliability of the pump under rigorous conditions.

Q: What are the main benefits of using this pump in industrial operations?

A: Customers benefit from high efficiency, low operating noise, flexible customization, reliable sealing, and minimal maintenance requirements. Its solid construction reduces downtime and prolongs service life, ensuring a cost-effective and dependable solution for demanding fluid handling tasks.
