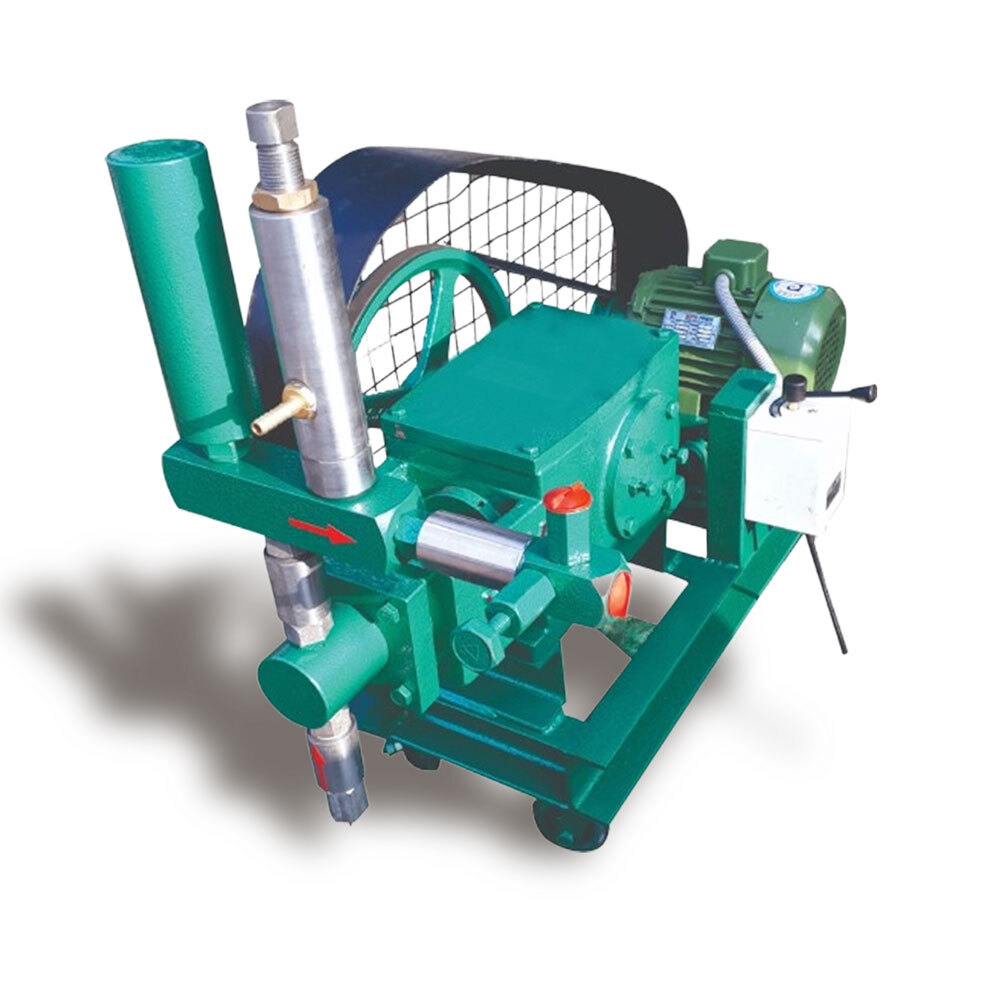

Hydrotest Pump (Motor Operated)
55400 INR/Piece
Product Details:
- Frequency 50 Hz
- Discharge Pressure Max 700 bar
- Head Size Up to 700 bar
- Control System Manual Pressure Regulator
- Fuel Tank Capacity N/A (Electric Motor)
- Speed 1440 RPM (Standard)
- Max Suction Up to 4 meters
- Click to View more
X
Hydrotest Pump (Motor Operated) Price And Quantity
- 1 Piece
- 55400 INR/Piece
Hydrotest Pump (Motor Operated) Product Specifications
- Portable Skid Mounted
- Base Frame Mounted
- IS 5167/ISO 9001
- Reciprocating Pump
- Up to 4 meters
- 1440 RPM (Standard)
- N/A (Electric Motor)
- Customizable upon requirement
- Below 80 dB
- 220V / 380V
- Cast Iron / Stainless Steel
- Other
- Other
- Sturdy Construction, Durable, Easy Operation, Low Maintenance
- Up to 50C
- Self-priming (with foot valve)
- Motor Operated Hydrotest Pump
- 1/2 inch BSP (standard)
- 10 - 100 LPH (Litres per Hour)
- 50 Hz
- Electric Motor Driven
- Up to 700 bar
- 1 HP to 5 HP Electric Motor
- Max 700 bar
- Up to 700 bar (10,000 psi)
- Positive Suction
- Mechanical Seal / Packing Gland
- Manual Pressure Regulator
- 10 - 100 LPH
- Water, Hydraulic Oil, Non-Corrosive Liquids
- IP55 (Standard Motor Protection)
- Splash Lubrication for Pump
- Pressure Gauge, Relief Valve, Suction Hose, Discharge Hose
- Approx. 60-120 kg (depending on model)
- Anti-Corrosive Powder Coated Finish
- Air Cooled Motor
Hydrotest Pump (Motor Operated) Trade Information
- 10 Piece Per Month
- 7 Days
Product Description
Feature
- Electric motorized / engine driven system.
- Totally enclosed drive mechanism.
- Heavy duty precision gear box
- Large air chamber
- Self-oiling system quick acting relief
- Totally dependable, reliable and efficient performance.
Application
- Boilers. Pressure Vessels. C.I. Mains Casting Parts.
- Gas Cylinder. Pipes & Tubes Parts Pumps and Valve Bady.
- Subject to Hydra Testing
Standard Accessories with M.O.C
- Pressure Release Valve Made From Stainless Steel 304 Material (Needle Type Valve)
- Discharge High Pressure Hose with Attachment of 1/2" inch BSP Connection Length 2 Mtrs.
- Stainless Steel 304 Glycerin Filled Pressure Gauge With 4" Inch Dial. (NABL Calibrated)
- Discharge Valve (NRV) Made From Stainless Steel 304 Material.
- Suction and overflow nylon braided hose pipe supple attachment of 1/2" BSP Length 2 Mtrs
- Suction 8 Discharge valve made from Stainless Steel 304 Material
- Air chamber made from stainless steel 304 material.
- Discharge valve (NRV) made from stainless steel 304 material.
- Pressure set valve made from stainless steel 304
- Distributor Body Made From Stainless Steel 304 Material
- Pump stand made from mild steel 3" x 1.5 "C channel
- Pump mounted on suitable trolley with Rubber Brake Caster wheel
- Pulley guard made from Mild Steel Material.
- Pump and motor pulley made from Mild Steel Material.
- Test pressure up to 1200 kg/ cm2
- Water flow capacity up to 120 LPH
- Motor up to 10 HP
Engineered for Rigorous Hydrotesting
Crafted to withstand demanding conditions, the motor operated hydrotest pump combines a sturdy base frame with IP55 electric motor protection. Its anti-corrosive powder coating enhances durability, while the air-cooled system ensures reliable performance in temperatures up to 50C. Modular construction accommodates custom requirements, and the noise level is contained below 80 dB, ensuring suitability in sensitive work environments.
Comprehensive Accessories Included
Supplied with a pressure gauge, relief valve, suction and discharge hoses, the hydrotest pump is ready for immediate deployment. These accessories streamline setup, improve accuracy in pressure measurement, and increase operator safety. With both mechanical seal and packing gland options, the pump is engineered to handle diverse media and offer excellent leak protection.
Wide-Ranging Industrial Applications
Ideal for service providers, manufacturers, and suppliers across India, this versatile test pump meets IS 5167 and ISO 9001 standards. Its customizable caliber, portable skid mount, and positive suction design fit a broad range of testing scenarios, from pipelines and vessels to large machinery and HVAC systems. Reliable operation and low maintenance make it a preferred choice for hydrostatic testing.
FAQ's of Hydrotest Pump (Motor Operated):
Q: How do I operate the Hydrotest Pump (Motor Operated)?
A: Operation is straightforward: connect the supplied suction and discharge hoses, fill the system with compatible test fluid (water, hydraulic oil, or non-corrosive liquid), ensure the pressure gauge and relief valve are properly set, then power the pump via the electric motor. The manual pressure regulator allows precise control up to 700 bar.Q: What maintenance does the hydrotest pump require?
A: The pump is designed for low maintenance, thanks to its splash lubrication and air-cooled motor. Regular checks of seals, lubrication levels, hoses, and cleaning of the anti-corrosive coating are recommended for optimal performance and longevity.Q: When should I use a hydrotest pump with a capacity of 10-100 LPH?
A: This capacity range is ideal for pressure testing pipelines, pressure vessels, and systems requiring controlled flow rates. Use in scenarios where accuracy, safety, and compliance with industry standards are critical.Q: Where can the pump be utilized safely?
A: With IP55 motor protection, anti-corrosive coating, and portability, this pump is suitable for use in industrial, construction, and site environments across India-both indoors and outdoors, provided the ambient temperature does not exceed 50C.Q: What process does the pump use to generate high pressure?
A: The reciprocating pump mechanism, powered by an electric motor, draws test fluid through positive suction, pressurizing it using mechanical seals or packing glands. Pressure is manually regulated via a built-in control system, ensuring safe, precise testing.Q: How does the pump benefit testing procedures?
A: It provides accurate, reliable pressure testing up to 700 bar, ensuring structural integrity and leak detection in pipelines, tanks, and equipment. Its portable, low-noise design and included accessories simplify setup and reduce operational risks.Tell us about your requirement
