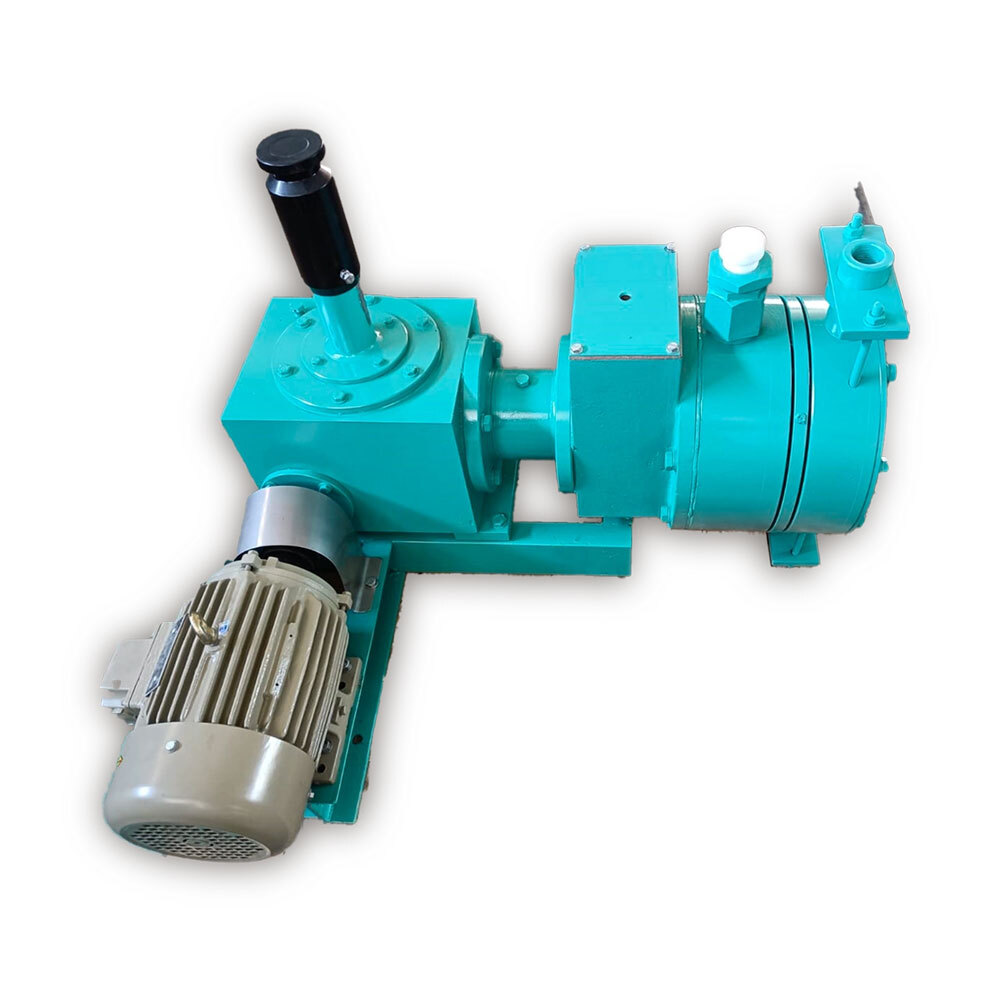

Mechanical Diaphgram-Hydraulic Diaphragm Pump

Name: Mechanical Diaphgram-Hydraulic Diaphragm Pump
Brand: RELIABLE ENGINEERS
Price: 36000 INR
Availability: InStock

36000 INR/Piece

Get a Price/Quote

Product Details:

Caliber Customizable
Mounting Type Base Plate Mounted
Control System Manual or Automatic Control
Flow Rate 0-500 LPH (Liters per Hour)
Head Size up to 80 meters
Voltage 220/380 V
Frequency 50/60 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mechanical Diaphgram-Hydraulic Diaphragm Pump Price And Quantity

Minimum Order Quantity 1 Piece
Price 36000 INR/Piece

Mechanical Diaphgram-Hydraulic Diaphragm Pump Product Specifications

Speed 2900 RPM
Seals Type PTFE or FKM
Working Temperature -10C to 80C
Structure Diaphragm Hydraulic Type
Standard ISO/CE certified
Noise Level <70 dB
Inlet/Outlet Threaded/Flanged, customizable
Discharge Pressure Upto 10 bar (150 psi)
Theory Reciprocating Pump
Control System Manual or Automatic Control
Mounting Type Base Plate Mounted
Application Other
Usage Other
Pressure Up to 10 bar
Caliber Customizable
Capacity 0 to 500 LPH
Features Leak-free, Low Maintenance, Long Service Life, Corrosion Resistant
Frequency 50/60 Hz
Fuel Type Electric Drive
Head Size up to 80 meters
Suction Type Positive Displacement
Voltage 220/380 V
Flow Rate 0-500 LPH (Liters per Hour)
Priming Self-priming
Pump Type Mechanical Diaphragm-Hydraulic Diaphragm Pump
Material Mild Steel, SS316, SS304 depending on application
Max Suction 5-6 meters
Power 0.37 kW to 3.7 kW

Motor Protection IP55
Connection Size 1/2'' to 1'' Threaded/Flanged
Diaphragm Material PTFE, EPDM options
Installation Position Horizontal
Ambient Temperature Range Up to 50C
Paint Finish Powder Coated
Adjustment Range 10%-100% Stroke Length
Viscosity Handling up to 1500 cP

Mechanical Diaphgram-Hydraulic Diaphragm Pump Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

Material

Stainless 316, 304, 316L, 304L
Haste alloy
Alloy 20
Carbon Steels Gland
Sealing - PTFE
Any other special alloy
PP
PTFE
PVDF

Option

Rupture indication arrangement (RIA) is an additional facility available with these pumps. These pumps with RIA are provided with sandwich of two diaphragms. The rupture of any one of the diaphragm can be sensed by pressure sensing device.
Multiple Head with identical or different outputs for each head using single drive.
Jacketed Head for Heating or Cooling the liquid been pumped.
Automatic flow variation by receiving 4-20 mA signal from the process.

Model No	LPH	Pressure	Spm	Motor H.P
FL-11/50/MD	50	4 KG/CM2	200/8:1	0.5
FL-11/100/MD	100	4 KG/CM2	200/8:1	0.5
FL-11/450/MD	450	2 KG/CM2	200/8:1	0.5
FL-22/1000/MD	1000	2 KG/CM2	200/8:1	1.0
FL-11/50/HAD	50	7 KG/CM2	200/8:1	0.5
FL-11/100/HAD	100	7 KG/CM2	200/8:1	0.5
FL-11/200/HAD	200	7 KG/CM2	200/8:1	0.5
FL-22/500/HAD	500	7 KG/CM2	200/8:1	1.0
FL-22/700/HAD	700	7 KG/CM2	200/8:1	1.0
FL-33/1000/HAD	1000	7 KG/CM2	200/8:1	2.0
FL-33/2000/HAD	2000	5 KG/CM2	200/8:1	2.0

Superior Performance for Challenging Applications

Engineered for optimum efficiency, this pump reliably handles fluids with viscosities up to 1500 cP and operates within a wide temperature range (-10C to 80C). The strong PTFE or EPDM diaphragm and corrosion-resistant body ensure durability. Speed regulation up to 2900 RPM with both threaded or flanged connections means easy integration into various systems.

Designed for Reliability and Low Maintenance

With self-priming capability, positive displacement suction, and leak-proof design, this pump minimizes operational downtime. Its powder-coated finish and optional materials (Mild Steel, SS304, SS316) provide adaptability to different chemical environments. Manual or automatic control options allow for precise adjustment to suit specific process needs.

Installation Flexibility and Safety

The pump offers horizontal installation on a base plate, supporting diverse plant layouts. Customized inlet/outlet and head sizes, combined with IP55 motor protection, ensure safety and compatibility. The noise output remains under 70 dB, making it workplace-friendly. ISO/CE certification guarantees compliance with international safety and quality standards.

FAQ's of Mechanical Diaphgram-Hydraulic Diaphragm Pump:

Q: How does the diaphragm pump ensure leak-free operation?

A: The pump employs a mechanical-hydraulic diaphragm system with advanced sealing (PTFE or FKM options) that effectively eliminates leakage, protecting both the environment and the integrity of the process fluid.

Q: What fluids and applications is the pump suitable for?

A: With a viscosity handling capacity up to 1500 cP and corrosion-resistant construction, the pump is ideal for chemicals, oils, water treatment, pharmaceuticals, and diverse industrial processes.

Q: When should I opt for PTFE versus EPDM diaphragm material?

A: PTFE is preferred for aggressive chemicals and higher temperature applications, while EPDM is ideal for water-based solutions and less aggressive fluids. Your application and fluid compatibility will determine the best choice.

Q: Where can this pump be installed, and what are its mounting options?

A: It is designed for horizontal installation, base plate mounted, and accommodates customizable inlet/outlet sizes for easy integration into new or existing plant systems.

Q: What is the process for adjusting the pump's flow rate or stroke length?

A: Adjustment can be made manually or automatically within a 10%-100% stroke range, allowing precise control of flow rates from 0 up to 500 LPH according to process demands.

Q: How does the pump provide long service life and low maintenance?

A: Robust construction, leak-free diaphragm design, corrosion-resistant materials, and powder-coated finish contribute to decreased wear, reducing downtime and maintenance needs.

Q: What are the benefits of the pump's IP55 motor protection and certification standards?

A: IP55 rated motor protection safeguards against dust and water ingress. ISO/CE certification ensures the pump meets global safety, performance, and quality requirements.
