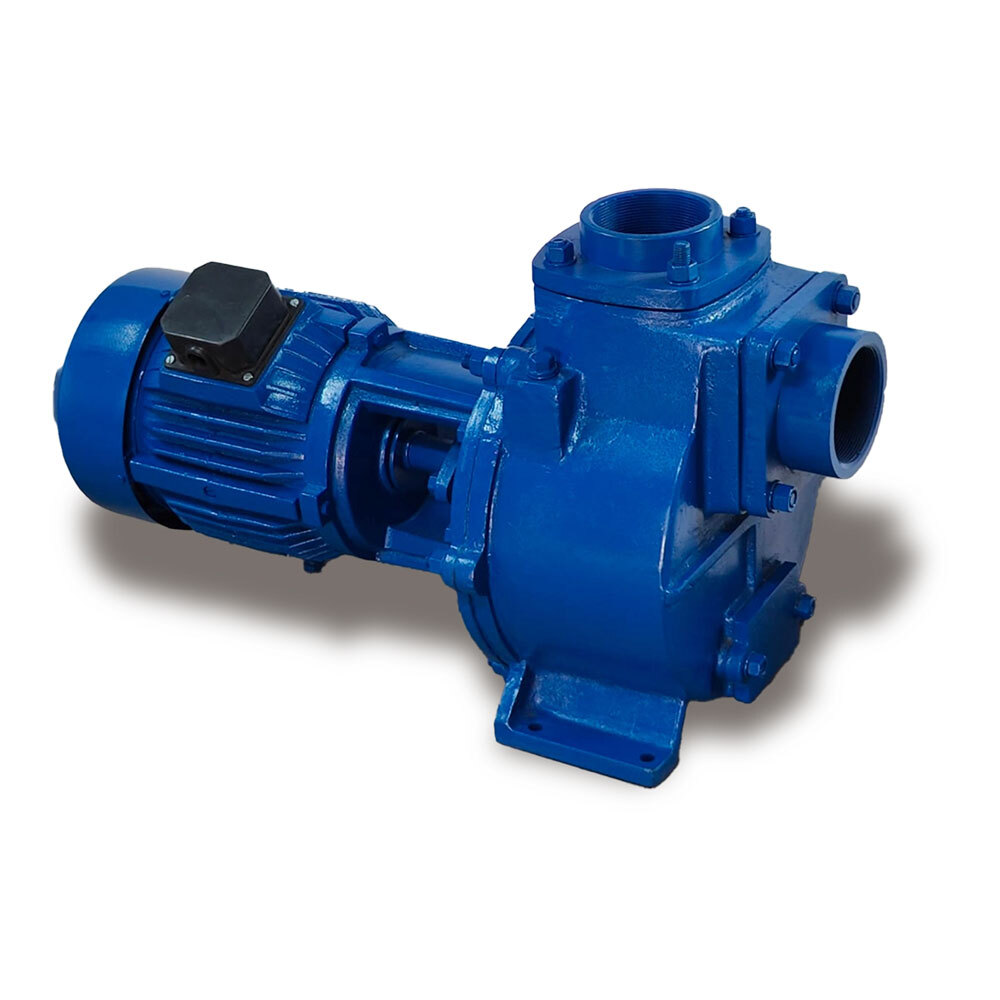

Self Priming Cum Centrifugal Mud Pump

Name: Self Priming Cum Centrifugal Mud Pump
Brand: RELIABLE ENGINEERS
Price: 13510 INR
Availability: InStock

13510 INR/Piece

Get a Price/Quote

Product Details:

Head Size Up to 30 meters
Mounting Type Base Mounted
Inlet/Outlet Varies (commonly 2 x 2 or as specified)
Theory Centrifugal Pump
Fuel Tank Capacity (If diesel variant) as per engine, commonly 10 - 30 liters
Caliber 50 mm to 100 mm
Frequency 50 Hz / 60 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Self Priming Cum Centrifugal Mud Pump Price And Quantity

Price 13510 INR/Piece
Minimum Order Quantity 1 Piece

Self Priming Cum Centrifugal Mud Pump Product Specifications

Fuel Tank Capacity (If diesel variant) as per engine, commonly 10 - 30 liters
Theory Centrifugal Pump
Standard IS 8418 / Equivalent
Caliber 50 mm to 100 mm
Inlet/Outlet Varies (commonly 2 x 2 or as specified)
Mounting Type Base Mounted
Head Size Up to 30 meters
Power 1 HP to 20 HP (as per selection)
Usage Other
Capacity 0.5 m3/hr to 100 m3/hr
Noise Level <80 dB
Features Robust Design, Abrasion Resistant, Easy Maintenance
Max Suction Up to 8 meters
Pump Type Self Priming Centrifugal Mud Pump
Speed 2880 RPM / 1440 RPM
Voltage 220V / 415V (as per model)
Seals Type Mechanical Seal / Gland Packing
Working Temperature Up to 90C
Fuel Type Electric / Diesel
Flow Rate Up to 1600 LPM (depends on model)
Control System Manual / Automatic
Pressure Medium Pressure
Application Other
Discharge Pressure Up to 3 bar
Suction Type Flooded Suction / Negative Suction
Priming Self Priming
Frequency 50 Hz / 60 Hz
Material Cast Iron / Stainless Steel
Structure Horizontal Centrifugal

Impeller Type Non-clog, Semi-open, dynamically balanced
Bearing Type Heavy Duty Ball Bearings
Max Solid Passage Up to 25 mm (depending on model)
Rotation Clockwise as seen from drive end
Paint Coating Anti-corrosive epoxy finish
Protection Class IP 44 / IP 55
Shaft Material High Grade Steel / SS
Cooling TEFC (Totally Enclosed Fan Cooled) motor

Self Priming Cum Centrifugal Mud Pump Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

High Efficiency
Heavy Duty
Adaptability
Less Noise

Feature

Excellent quick self priming action without foot valve up to 8 mtrs.
Automatic air release during priming.
Back pull design, so easy maintained without disturbing pipe lines.
Dynamically balanced rotating parts ensure less vibration.
Better efficiency because of good hydraulic design. Non- clog impellers to handle solid particles up to 25 mm.
Minimum parts, fast repairing at low cost, Also pump is available at Available in Bare, Coupled, Monoblock, Belt driven & Engine driven
Also offered pump with trolley / trailer to move it from one place to Graded casting & perfect machining of all components ensure long life.
Able To Offer Pumps With Closed Impellers For Clear Liquids.
Monoblock pumps can be able to with stand with wide voltage fluctuations.
Less expensive & easily available spares
Pumps can be fitted with mechanical seal as per customer's requirements

Application

Public utilities: For pumping muddy water, sewage, polluted liquids, solid and in swimming pool.
Dewatering Basements, Trenches, and Construction sites.
Onboard shift, as bilge, for desk wash & engine cooling.
Industrial: Petroleum product, Ceramic product Chemicals, Thermal plants etc.
Tiles & Marble factories, effluent plants.
Marine Works: Handling liquids from docs, ports and vessels etc.
Salvage Operations: Fire fighting.
Mobile Machinery: Cooing water for marine engines and shovels.
Any application where priming is to be avoided

Specification

Power Range :- 0.5 to 20 H.P
Supply :- 1Ph 230V, 50Hz A.C Supply / 3Ph 380-415V, 50Hz A.C Supply
Speed :- 2880rpm / 1440rpm
Head Range :- 6 to 40Meter
Flow Range :- 5 to 42 Lps
Solid Handling Capacity :- Up to 25mm
Motor-Degree of Protection :- IP 54
Insulation Class :- B

Material

Casing: Cast iron / SS - 304 (CF - 8) / SS - 316 (CF - 8M)
Impeller: Cast iron / CF - 8 / CF -8m / Bronze
Diffuser: Cast iron / CF - 8 / CF - 8 M / Bronze
Shaft: EN- 8 / SS - 304 / SS - 316
Sleeve: SS - 410 / SS - 304 / SS - 316 / Bronze
Bearing Housing: Cast iron
Sealing: Sic-Sic / Carbon-Ceramic / Tc-Tc Seal / Gland type

Advanced Non-Clog Impeller

The semi-open, dynamically balanced impeller is designed to handle solids and slurries efficiently, preventing clogging and ensuring smooth flow. This feature is ideal for pumping muddy and abrasive fluids, significantly reducing downtime and maintenance requirements.

Durable & Corrosion-Resistant Build

Constructed from cast iron or stainless steel, the pump features an anti-corrosive epoxy finish for enhanced longevity, even in harsh environments. Heavy-duty ball bearings and robust construction contribute to its reliability and extended service life.

Versatile Power Options & Application

Choose from electric (TEFC motor) or diesel-driven models to match site requirements. The pump accommodates various inlet/outlet sizes, mounting, and control systems, making it suitable for industrial, municipal, and construction operations.

FAQ's of Self Priming Cum Centrifugal Mud Pump:

Q: How does the self-priming feature benefit operations?

A: The self-priming design allows the pump to automatically remove air from the suction line, enabling quick starts without manual priming. This is particularly advantageous where uninterrupted and hassle-free pumping of muddy or slurry liquids is essential.

Q: What types of fluids and solids can the pump handle?

A: The pump is engineered to handle muddy water, slurry, sewage, effluents, and fluids containing suspended solids up to 25 mm, thanks to its non-clog, semi-open impeller and abrasion-resistant materials.

Q: When should mechanical seal or gland packing options be selected?

A: Mechanical seals offer superior leak prevention and lower maintenance for clean or slightly contaminated liquids, while gland packing is ideal in highly abrasive fluids where ease of replacement is beneficial. The choice depends on the specific pumping medium and site conditions.

Q: Where are these pumps commonly used?

A: These pumps are widely deployed in industrial plants, construction sites, municipal water treatment facilities, agricultural operations, and locations requiring reliable slurry and mud handling across India.

Q: What is the process of installing this pump?

A: Installation involves securely mounting the base, ensuring proper alignment of inlet/outlet connections, and connecting to a compatible power source (electric or diesel). Follow manufacturer guidelines for priming and starting for optimal performance.

Q: What advantages does the anti-corrosive epoxy finish provide?

A: The anti-corrosive epoxy coating protects internal and external surfaces from rust and chemical attack, extending the pump's operating life and reducing the frequency and cost of maintenance.

Q: How does the TEFC motor and heavy-duty bearings enhance reliability?

A: The TEFC (Totally Enclosed Fan Cooled) motor prevents dust and water ingress, while heavy-duty ball bearings support smoother rotation and longer lifespan, even under demanding loads.
