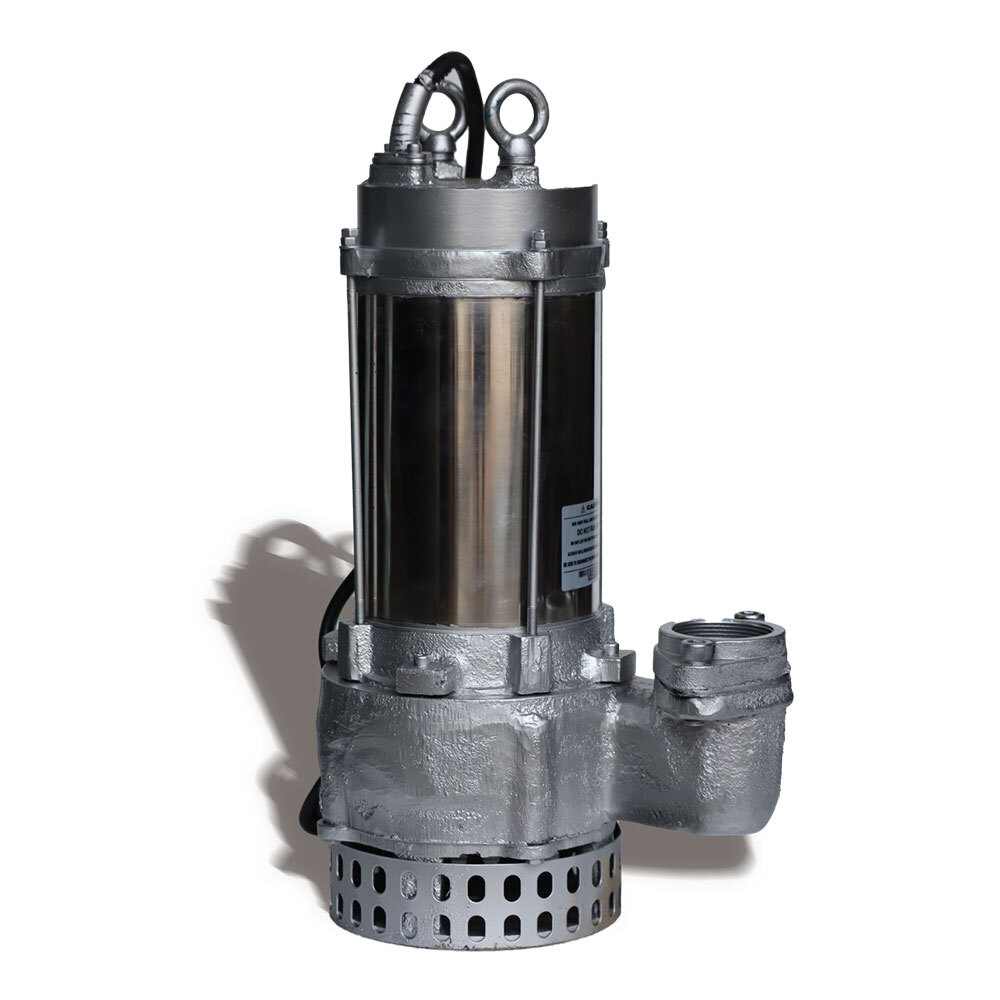

Sewage Submersible Pump

Name: Sewage Submersible Pump
Brand: RELIABLE ENGINEERS
Price: 28000 INR
Availability: InStock

28000 INR/Piece

Get a Price/Quote

Product Details:

Fuel Tank Capacity N/A (electric driven)
Flow Rate 15-250 m3/h
Working Temperature 0C to 40C
Frequency 50 Hz / 60 Hz
Head Size 6-35 m
Features Corrosion-resistant, clog-free impeller, automatic thermal protect
Theory Centrifugal Pump
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Sewage Submersible Pump Price And Quantity

Minimum Order Quantity 1 Piece
Price 28000 INR/Piece

Sewage Submersible Pump Product Specifications

Usage Other
Flow Rate 15-250 m3/h
Fuel Tank Capacity N/A (electric driven)
Suction Type Bottom suction with strainer
Frequency 50 Hz / 60 Hz
Working Temperature 0C to 40C
Priming Submersible, no manual priming required
Power 1.5 kW - 15 kW
Features Corrosion-resistant, clog-free impeller, automatic thermal protect
Structure Vertical single-stage
Head Size 6-35 m
Voltage 220-240V / 380-415V (Single/Three Phase)
Noise Level Below 70 dB(A)
Seals Type Mechanical Seal
Theory Centrifugal Pump
Standard IP68 Protection, IS: 8034
Pump Type Sewage submersible pump
Fuel Type Electric
Control System Manual/Float switch/Automatic
Application Other
Discharge Pressure Up to 3.5 bar
Pressure Low to medium
Caliber 100 mm
Material Stainless Steel / Cast Iron
Mounting Type Submersible Installation
Capacity Up to 250 m3/h
Speed 2900 RPM
Inlet/Outlet 100 mm / 100 mm (customizable)
Max Suction Self-priming when submerged

Max Solid Passage Up to 50 mm
Protection Class IP68
Insulation Class F/H
Impeller Type Non-clog / Vortex Impeller
Cooling Water-cooled motor
Bearings Heavy duty, maintenance-free
Cable Length 10 m (customizable)
Installation Depth Up to 20 meters
Max Liquid Density 1.1 kg/dm3

Sewage Submersible Pump Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

Technical feature

	RESP	REDP
Motor	Two Pole Continuous Duty Squirrel Cage Submersible Type Induction Motor	Four pole continuous duty squirrel cage submersible type induction motor
Insulation Class	F	F
Protection	IP 68 / Thermal Over Load	IP-68/Thermal Overload / Moisture
Cable	PVC Insulated Copper Conductor Flexible	PVC Insulated Double Sheathed Copper Conductor Flexible

Application

Construction Dewatering
Commercial Waste Water
Dewatering in heavy industries like power,
steel, fertilizer, cement
Effluent handling in chemical and process industries
Hotel & hospital
Municipal Sewage and drainage application
Rain water Dewate Ring

Designed for Reliability and Durability

Built with heavy-duty, maintenance-free bearings and a robust mechanical seal, this pump ensures longevity with minimal downtime. Its corrosion-resistant construction and automatic thermal protection safeguard the motor, making it suitable for continuous, demanding sewage transfer operations.

Efficient, Clog-Free Performance

The specialized non-clog/vortex impeller accommodates solids up to 50 mm, reducing clogging risks. A bottom suction design with a strainer enhances debris handling, ensuring consistent performance even with challenging wastewater compositions and minimizing maintenance interventions.

Flexible Installation and Operation

Adaptable mounting and customizable inlet/outlet options make this pump a seamless fit for varied submersible installations. It supports both manual and automatic control via float switches, while its quiet, low-vibration operation suits noise-sensitive environments.

FAQ's of Sewage Submersible Pump:

Q: How do I install the sewage submersible pump for optimal performance?

A: To achieve optimal performance, the pump should be installed vertically and fully submerged at a depth up to 20 meters. Ensure the inlet with bottom strainer is clear of obstructions, and use the customizable cable length for safe electrical connections. Consult the installation guide and adhere to IS: 8034 standards.

Q: What is the maximum solid size the impeller can handle without clogging?

A: The non-clog/vortex impeller can handle solids up to 50 mm in diameter, making the pump suitable for typical sewage and wastewater with large particulate matter while minimizing clogging incidents.

Q: When is routine maintenance required for this pump?

A: Routine maintenance is minimal due to the heavy-duty, maintenance-free bearings and robust mechanical seal. Visual inspections, cable checks, and verifying pump efficiency every 6-12 months are recommended, depending on usage intensity.

Q: Where can this sewage submersible pump be used?

A: This pump is ideal for municipal wastewater plants, industrial effluent pits, commercial building basements, and residential sewage sumps requiring reliable submersible pumping with high solid handling capability and corrosion resistance.

Q: What benefits does the automatic thermal protection provide?

A: Automatic thermal protection helps prevent motor overheating by shutting the pump down if temperatures exceed safe limits. This extends motor life and maintains reliable operation, especially in demanding, long-duration applications.

Q: How is the pump started and controlled?

A: The pump offers versatile control options including manual start, float switch activation for automatic operation, or full automation with compatible control panels. This flexibility suits varied operational preferences and site requirements.

Q: What type of liquids and conditions can the pump handle?

A: This pump is designed for sewage and wastewater with liquid densities up to 1.1 kg/dm3, operating efficiently between 0C to 40C, and is compatible with both single- and three-phase voltages (220-240V/380-415V). Its corrosion-resistant materials also allow use in chemically aggressive environments.
