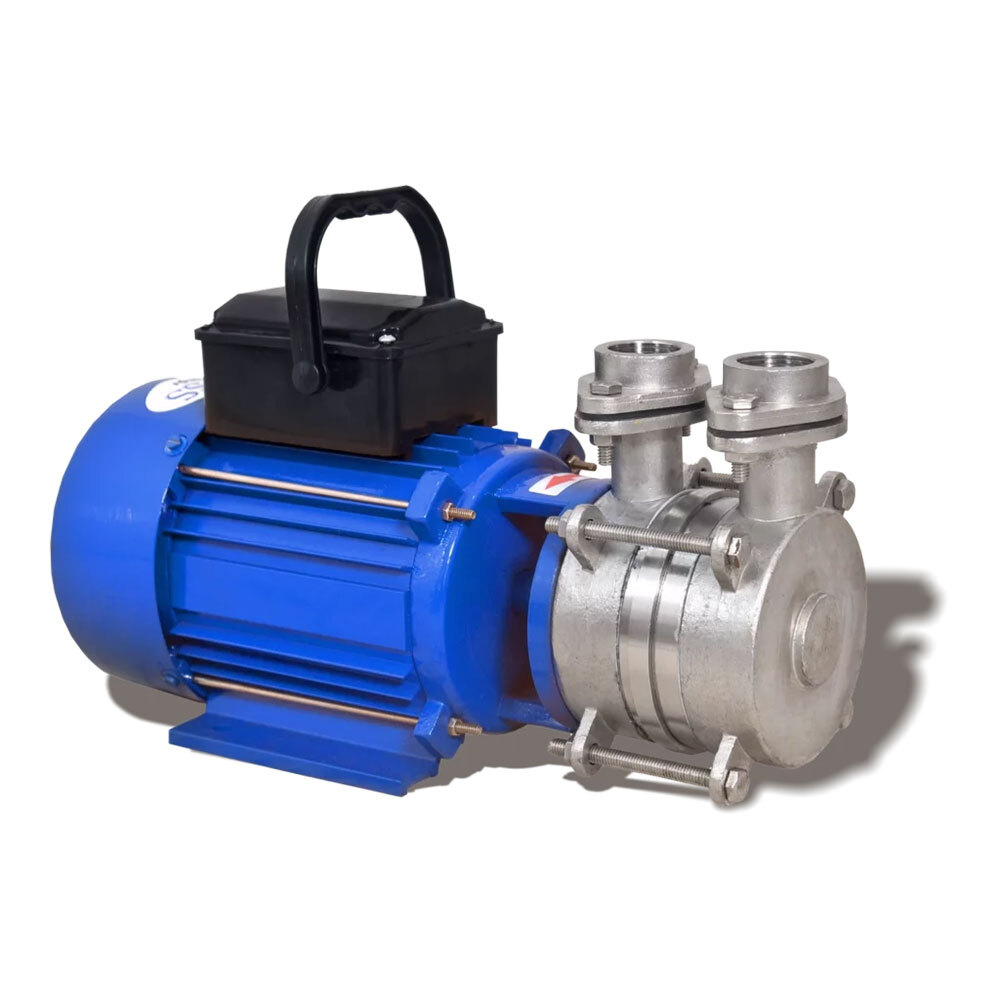

SS Self Priming Pump

Name: SS Self Priming Pump
Brand: RELIABLE ENGINEERS
Price: 14500 INR
Availability: InStock

14500 INR/Piece

Get a Price/Quote

Product Details:

Working Temperature Up to 70C
Features Corrosion Resistant, Portable Handle
Head Size 15-30 meters
Control System Manual On/Off
Theory Centrifugal Pump
Noise Level Low Noise Operation
Inlet/Outlet 25mm x 25mm (1 x 1)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SS Self Priming Pump Price And Quantity

Minimum Order Quantity 1 Piece
Price 14500 INR/Piece

SS Self Priming Pump Product Specifications

Working Temperature Up to 70C
Features Corrosion Resistant, Portable Handle
Usage Other
Head Size 15-30 meters
Standard ISI Marked Components
Control System Manual On/Off
Pressure Up to 3 bar
Theory Centrifugal Pump
Noise Level Low Noise Operation
Fuel Type Electric
Power 0.5-2 HP
Inlet/Outlet 25mm x 25mm (1 x 1)
Priming Self Priming
Speed 2900 RPM
Capacity Up to 3300 LPH
Mounting Type Base Mounted
Structure Monoblock
Seals Type Mechanical Seal
Voltage 220-240V
Material Stainless Steel (SS 304)
Suction Type Self Suction
Caliber 25mm
Fuel Tank Capacity N/A (Electric Operated)
Flow Rate 30-55 LPM
Pump Type Self Priming Pump
Application Other
Frequency 50 Hz
Max Suction 8 meters
Discharge Pressure Up to 3 bar

Impeller Type Enclosed, Stainless Steel
Insulation Class Class B/F
Bearings Double-sealed ball bearings
Weight 8-16 kg (Depending on Model)
Cable Length 1.5 meters
Shaft Material Stainless Steel
Protection Class IP 44/54

SS Self Priming Pump Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

Feature

All wetted parts of pumps are made from lost wax process (investment casting), so excellent surface finish.
Smooth flow path/ hydraulic passage and no casting defects like blow holes, cracks etc.
Centripetal / regenerative impeller for better suction. Pumps will be normally available in CF-8m /CF-8 (Gun metal, Alloy-20)and also in other material as per customer's requirements.
Single /multistage pumps to handle crystal clear liquids for high pressure duties.
Very quick priming, no need of foot valve Very high suction capacity up to 8 meters without much noise.
Various types of sealing arrangements as per customer's liquid characteristics.
Normally fitted with sic/sic seal faces with teflon cup and wedge.
Pumps are available in monoblock and in bare type also with flameproof motor.
All motors are of "TEFC" type Pump can be offered with electro polishing.
Able to handle temperature up to 80 C Trolley mounted available.
Also available with 110 Volt / 60 Hz.
Custom built pumps available

Application

All clear liquids without solid suspensions like diesel,petrol, lpg, oil, solvents, syrup, dm water, chemicals, steam boiler feeding, evacuation of condensate water, boosting of pressure, as a drum/barrel pump

MODEL	HP RPM	SIZE	HEAD IN METERS
			5	10	15	20	25	30	35	40	45	50	60	65	75
RSP-0	0.5X2900	12X12	15	12	8	6				DISCHARGE
RSP-1	0.5X2900	25X25	38	30	23	19	13				IN
RSP-2	0.5X2900	25X25	31	27	23	17	11					LITRE
RSP-3	1X2900	25X25	49	45	40	36	22	17	10	17			PER MINUTE
RSP-5	1X1450	25X25	63	56	50	41	35	28	21
RSP-6(2-Stages)	2X1450	25X25	81	63	68	51	58	43	50	35	41	26	18	13

Performance are at 2900/1450 RPM, 50 Hz and tested with Clear Water. Due to constant R & D activity, details are subject to change without prior Notice.

PUMP MODEL NO	SUCTION AND DELIVERY	PERFORMANCE TABLE FOR SP SERIES PERFORMANCE AT 1450 RPM
RSP - 8	40	Motor H.P	1.5	1.5	2	2	3	3
		METER	10	15	20	25	30	35
		LPM	145	130	108	91	63	33
RSP - 9	40	Motor H.P	3	3	3	5	5	5
		METER	20	30	40	50	60	65
		LPM	180	180	135	113	94	84

Corrosion-Resistant, All Stainless Steel Construction

Built entirely from SS 304 stainless steel, this self-priming pump resists rust and corrosion, making it suitable for handling water or other mildly aggressive liquids. Its robust construction ensures long-term performance and low wear, reducing the need for frequent replacements even in demanding environments.

Efficient Self-Priming and High Discharge Capabilities

With self-priming up to 8 meters and flow rates of 30-55 liters per minute, this pump simplifies installation and operation. Whether for new setups or replacement jobs, it starts reliably without manual priming, supporting a head height up to 30 meters and managing substantial discharge rates for varied tasks.

User-Friendly Operation and Maintenance

Equipped with a portable handle and manual On/Off control, this pump is easy to transport and operate. Features like double-sealed ball bearings and low-noise operation provide a pleasant user experience, while the compact, monoblock structure allows for hassle-free maintenance and space-saving installation.

FAQ's of SS Self Priming Pump:

Q: How does the self-priming feature enhance pump installation and operation?

A: The self-priming capability means the pump can automatically remove air from the inlet and begin pumping liquid quickly after start-up, without the need for manual priming. This simplifies both installation and daily use, reducing downtime and the risk of dry runs.

Q: What types of fluids are suitable for pumping with this SS Self Priming Pump?

A: This pump is designed to handle clean water and mildly corrosive liquids, thanks to its SS 304 stainless steel construction. However, it is not recommended for slurries, highly viscous, or abrasive fluids.

Q: When should I use a pump with stainless steel construction and enclosed impeller?

A: Stainless steel construction is ideal in environments prone to corrosion or where water quality must be maintained. The enclosed impeller enhances efficiency and is particularly effective for transporting clean or slightly contaminated liquids at higher pressures.

Q: Where is this self-priming pump best installed or used?

A: This pump is suited for base-mounted installation in residential, agricultural, and light industrial settings across India. Its 1.5-meter cable and compact structure make it adaptable for limited-space locations or where portability is needed.

Q: What are the main benefits of using a monoblock self priming centrifugal pump?

A: A monoblock design increases strength and reduces leaks, while the self-priming capability ensures fast start-up. Additionally, the centrifugal theory assures efficient fluid movement and the corrosion-resistant design increases service life.

Q: How should I maintain the SS Self Priming Pump for optimal performance?

A: Maintenance involves regular inspection of seals, bearings, and electrical connections to ensure smooth operation. The double-sealed ball bearings and mechanical seal minimize routine service needs, but periodic checks are advised to prevent wear or leakage.

Q: What safety and operational features contribute to the reliability of this pump?

A: This pump includes protection class options of IP44/IP54, double-sealed ball bearings to prevent contamination, and an insulated stainless steel shaft (Class B/F), ensuring safe and reliable operation even under demanding conditions.
