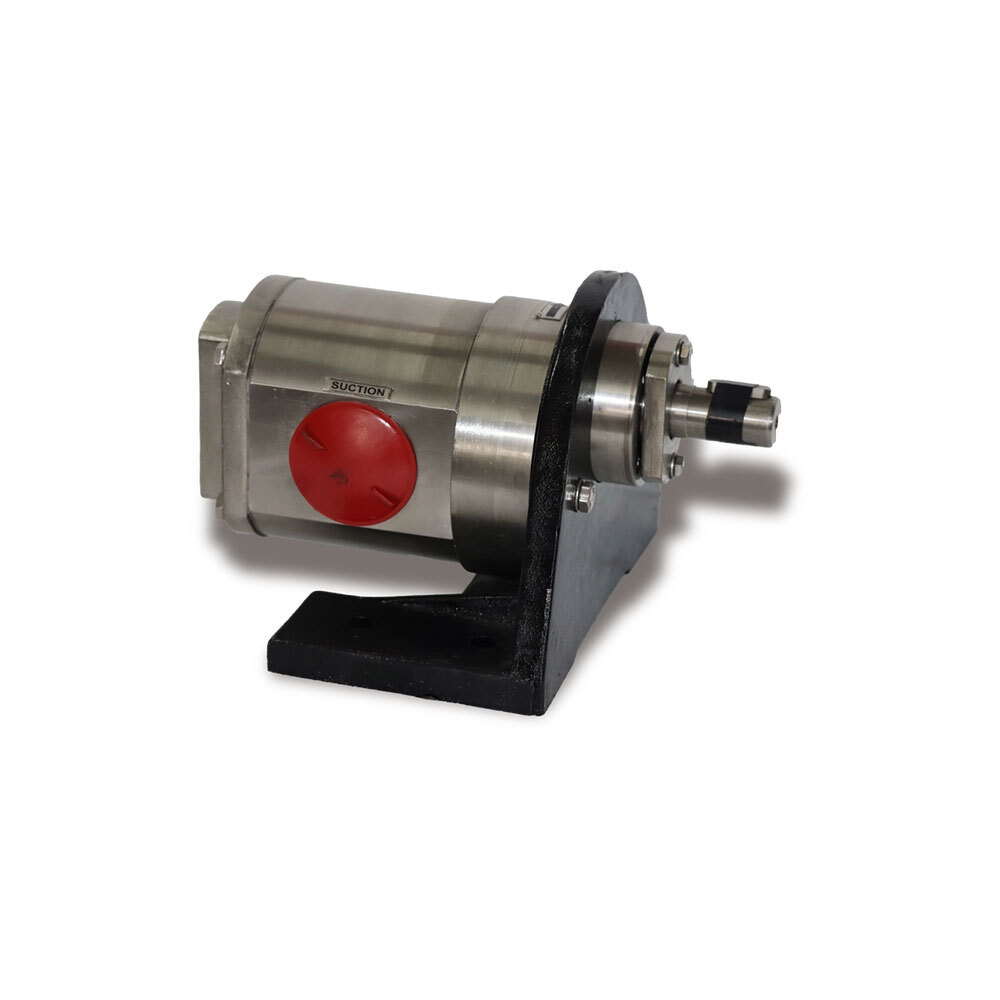

Stainless Steel Gear Pump
11000 INR/Piece
Product Details:
- Control System Manual/Automatic
- Head Size Upto 100 meters
- Voltage 220V / 380V / 415V
- Speed Up to 1450 RPM
- Noise Level Low
- Mounting Type Base Plate Mounted
- Discharge Pressure Upto 10 kg/cm2
- Click to View more
X
Stainless Steel Gear Pump Price And Quantity
- 1 Piece
- 11000 INR/Piece
Stainless Steel Gear Pump Product Specifications
- Base Plate Mounted
- Other
- 10 LPM to 500 LPM
- Self Priming
- Upto 10 Bar
- Other
- Positive Displacement
- 220V / 380V / 415V
- Low
- Up to 1450 RPM
- Manual/Automatic
- 0.5 HP to 10 HP
- Upto 100 meters
- 1/2 to 3 (BSP & NPT Thread or Flanged)
- ISO 9001, CE Certified
- Stainless Steel (SS 304 / SS 316)
- Corrosion Resistant, Leak Proof, Easy Maintenance
- Rotary Gear Pump
- Single / Double Stage
- Electric
- Mechanical Seal / Gland Packing
- 10 LPM to 500 LPM
- According to model / application
- Up to 5 meters
- Gear Pump
- -10C to 80C
- Upto 10 kg/cm2
- 50/60 Hz
- Up to 1,00,000 cSt
- Clockwise or Anti-clockwise
- Air Cooled
- Varies by model, typically 8-40 kg
- None (Gear Type)
- Flexible/Standard Coupling
- Stainless Steel
- Silver (Stainless Steel Natural)
- Ball Bearing
- Polished
Stainless Steel Gear Pump Trade Information
- 10 Piece Per Week
- 7 Days
Product Description
- High Efficiency
- Heavy Duty
- Adaptability
- Less Noise
Feature
- Self-Priming
- Working Pressure upto 10 Bar
- Size from 1/2" to 21/2" to handle flow from 15 LPM to 300LPM
- Can handle maximum viscosity 25000 CST
- Designed to handle fluid at temperature upto 200 deg C
- Available in flange and foot mounting type.
- The gears and shaft in the pump are nitrided to give longer life & trouble free performance.
- High strength three pieces stainless steel construction in the pump makes its easily cleanable and maintainable.
- The PTFE coated bush in the pump for smooth performance in dry bearing condition.
- Bi-Directional
- Sealing options available - Gland Packing / Single Mechanical Seal / Oil Seal
Application
- Food & Beverages Industry
- Pharmaceutical Industry
- Dyeing & Printing Houses
- Chemical Industry
- Cosmetic Industry
Liquid can handle
- All types of Food Products (Clarified Butter/Fruit Pulp Vegetable Sauce/Vegetable Oil/Animal Oil/Fish Oil)
- Sugar Solution
- Glycerine, Glycol etc
- Cosmetic products (Shampoo/Body Lotion/Baby Oil/ Hair Oil/Shower Gel/Soap Solution etc)
- Paints & Resins
- Corrosive Viscous Chemicals
Accessories
- Stand and Base Frame
- Product Connecting Flanges
- Motor and Gear Reducers
- Variable Frequency Drives
- Motor Stator
- Couplings
Model
Dimensions
Versatile Operation for Demanding Applications
Whether your system requires clockwise or anti-clockwise rotation, this gear pump delivers reliable performance across a spectrum of industrial needs. Its self-priming and positive displacement features allow for smooth handling of various liquids, while the air-cooled design ensures safe operation within a broad temperature range. Enjoy reduced downtime thanks to easy maintenance and robust leak-proof construction.
Engineered for Efficiency and Longevity
Built from high-quality stainless steel and fitted with mechanical or gland packing seals, this pump offers superior resistance to corrosion and minimizes maintenance frequency. Its flexible mounting, wide voltage compatibility (220V/380V/415V), and robust structure (single/double stage) mean it can be seamlessly integrated into existing setups, delivering consistent performance even with viscous or corrosive fluids.
FAQ's of Stainless Steel Gear Pump:
Q: How does the Stainless Steel Gear Pump handle varying rotational directions?
A: This pump is engineered to operate in both clockwise and anti-clockwise rotations, allowing for easier installation and adaptability to specific system requirements. Users can configure rotational direction based on their process needs.Q: What types of fluids can this gear pump accommodate?
A: Thanks to its polished stainless steel construction and ability to handle viscosities up to 1,00,000 cSt, this pump is suitable for a wide range of fluids including chemicals, oils, and other viscous or corrosive substances.Q: Where is this pump most commonly used?
A: These gear pumps are widely utilized in industrial manufacturing, chemical processing, and liquid transfer operations, particularly where corrosion resistance, easy maintenance, and efficient performance are essential.Q: What is the maximum pressure and flow capacity of this pump?
A: The pump offers discharge pressures up to 10 kg/cm2 (10 Bar) and flow rates from 10 LPM to 500 LPM, making it suitable for both low and high-demand applications.Q: How does the self-priming feature benefit operational processes?
A: The self-priming design ensures the pump can automatically evacuate air and begin fluid movement without manual intervention, simplifying operation and reducing startup time.Q: What maintenance advantages does the gear pump offer?
A: Its corrosion-resistant, leak-proof design and easy-to-access components facilitate routine maintenance. Both mechanical seal and gland packing options ensure compatibility with different operational preferences.Tell us about your requirement
