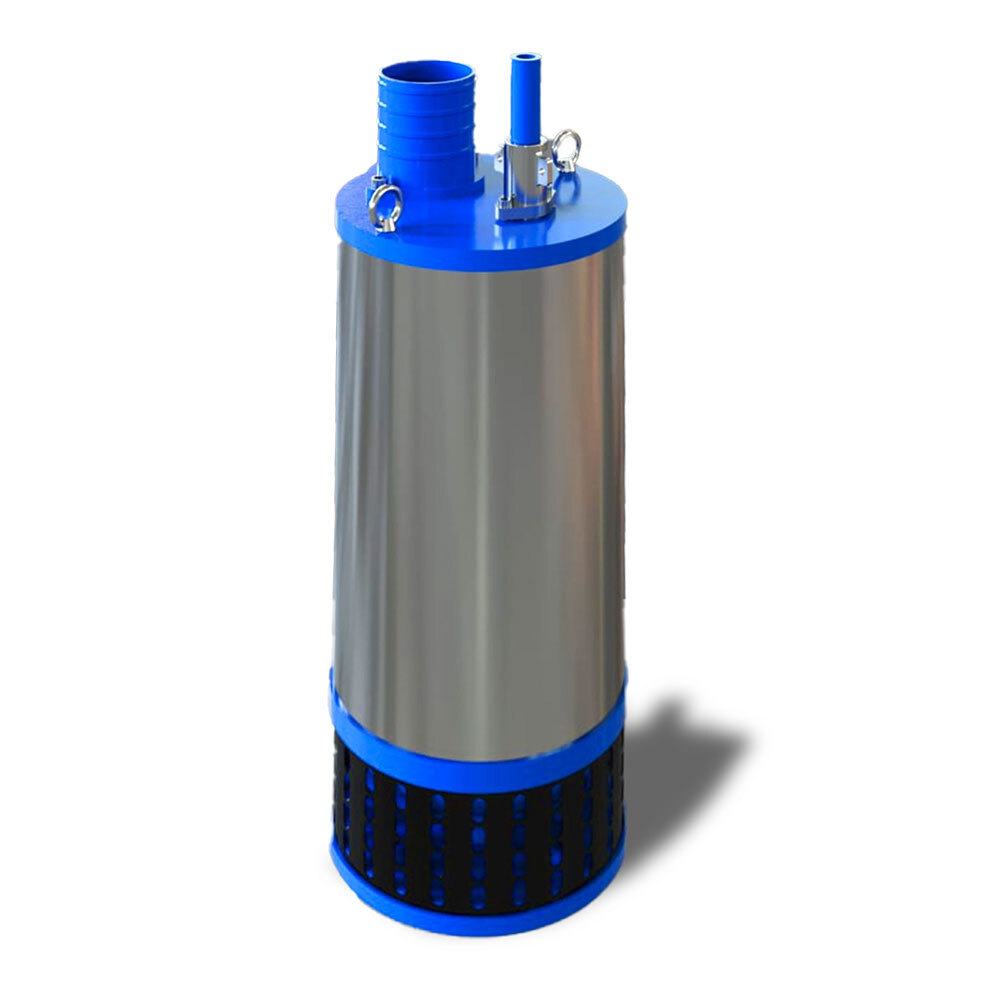

Submersible Dewatering Pump

Get a Price/Quote

Product Details:

Fuel Tank Capacity Not Applicable (Electric)
Max Suction Submersible (Not Applicable)
Discharge Pressure Up to 8 Bar
Head Size Up to 80 meters
Caliber 50 mm to 150 mm
Mounting Type Submersible/Vertical
Speed 2850 RPM (Synchronous)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Submersible Dewatering Pump Price And Quantity

Minimum Order Quantity 1 Piece

Submersible Dewatering Pump Product Specifications

Material Stainless Steel & Cast Iron
Inlet/Outlet 2 to 6 (Depending on Model)
Capacity Up to 500 m3/h
Working Temperature Up to 40C
Noise Level Less than 70 dB(A)
Usage Other
Pump Type Submersible Dewatering Pump
Application Other
Theory Centrifugal Pump
Frequency 50 Hz / 60 Hz
Control System Manual/Automatic
Priming Self-priming (Submersible Operation)
Seals Type Mechanical Seal
Structure Vertical Submersible
Suction Type Bottom Suction
Mounting Type Submersible/Vertical
Discharge Pressure Up to 8 Bar
Head Size Up to 80 meters
Caliber 50 mm to 150 mm
Fuel Tank Capacity Not Applicable (Electric)
Standard IS/IEC Compliant
Max Suction Submersible (Not Applicable)
Features Lightweight, Portable, Easy to Install, High Efficiency, Corrosion Resistant
Voltage 220-240V / 380-415V (Depending on Model)
Fuel Type Electric
Pressure 2 to 8 Bar (Depending on Head)
Flow Rate Up to 500 m3/h
Power 0.75 kW to 15 kW
Speed 2850 RPM (Synchronous)

Impeller Type Semi-Open / Vortex
Protection Class IP68
Thermal Protection Inbuilt Motor Protector
Motor Cooling Water Cooled
Bearing Type Double Sealed Ball Bearing
Cable Length 10 m to 40 m
Start Method DOL/Star-Delta
Max Submergence Depth 20 meters
Service On-site installation and support available

Submersible Dewatering Pump Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

Application

Building and construction dewatering
Strom water
Sea Water
Canal
River bed/Dry dock/ Off shore

MATERIAL OF CONSTRUCTION
Motor Body	S.S 202/304 or Aluminium
Cooling Jacket	S.S 202/304 / M.S
Impeller	C.I IS 210 FG260 / S.S 304 / S.S 316
Shaft:	S.S 431
Strainer:	S.S 304
Mech. Seal:	Double type: TC Vs. TC
Bearing:	Deep Groove Ball Bearing (Top), Double Row Angular Contact Bearing (Bottom)

	REDPT
Motor	Two Pole Construction Duty Squirrel Cage Submersible Type Induction Motor
Insulation Class	F
Protection	IP 68 / Thermal Over Load/Moisture
Cable	Oil Proof PVC Insulated Double Sheathed Copper Conductor Flexible Cable

Table

MODEL	HP	DEL SIZE	SOLID SIZE	HEAD IN METERS	4	6	8	10	12	14	16	18	20	24	28	SHUT OFF
REDPT 1.0/2	1	50	10	DISCHARGE IN LPM	350	250	200	175	80							12
REDPT 2.0/2	2	50	15		600	500	450	300	250	100						15
REDPT 3.0/3	3	80	15		900	800	700	650	550	450	250					18
REDPT 5.0/4	5	100	20		2200	2000	1750	1400	920	250						15
REDPT 5.0/3	5	80	15		1100	1080	1050	1000	930	820	670	580	240			22
REDPT 7.5/4	7.5	100	20		2400	2250	2100	1800	1400	800						16
REDPT 10.0/6	10	150	30		3900	3600	3200	2700	2000	1200						16
REDPT 15.0/6	15	150	30		4500	4250	3950	3350	3000	2600	2200	1800	950			28
REDPT 20.0/6	20	150	30		5000	4750	4500	4250	4000	3750	3400	3100	2750	2000	1200	34
				HEAD IN METERS	4	8	12	16	20	24	28	32	36	40	45
REDPT 10.0/4	10	100	20	DISCHARGE IN LPM	2400	2200	2000	1750	1400	1000	500					32
REDPT 15.0/4	15	100	20		2800	2600	2400	2175	1950	1700	1400	1100	750	350		42
REDPT 20.0/4	20	100	20			2620	2550	2400	2220	2040	1860	1620	1380	1080	660	51
REDPT 25.0/6	25	150	25				3800	3500	3150	2800	2400	2000	1600	1100	450	48
REDPT 30.0/6	30	150	25				4000	3800	3500	3200	2800	2500	2100	1700	1100	54
REDPT 35.0/6	35	150	25				4400	4200	3900	3650	3300	3000	2600	2200	1650	60
				HEAD IN METERS	5	10	15	20	25	30	35	40	45	50	55
REDPT 40.0/6	40	150	35	DISCHARGE IN LPM	7100	6350	5550	4550	3350	1775						35
REDPT 50.0/6	50	150	35		8000	7350	6350	5650	4700	3650	2334	1334				45
REDPT 40.0/6	40	150	30		4200	4000	3770	3550	3310	3000	2640	2300	1850	1350	600	59
REDPT 50.0/6	50	150	30			4500	4250	4100	3840	3650	3350	3050	2640	2350	1890	68

Reliable and Efficient Performance

This submersible dewatering pump features a semi-open or vortex impeller, achieving high flow rates up to 500 m3/h and discharge pressures up to 8 bar. The double-sealed ball bearings and water-cooled motor guarantee smooth operation and extended durability, even in challenging environments. With automatic or manual control options, it adapts easily to various site conditions.

User-Friendly Installation and Support

Designed for easy transportation and quick setup, the pump comes with a 10 to 40-meter cable and a vertical, bottom-suction structure ensuring optimal dewatering. Professional on-site installation and comprehensive maintenance support are available throughout India, providing peace of mind and continuous operation for your projects.

Advanced Protection and Safety

Engineered with IP68-rated housing and an inbuilt thermal motor protector, this pump is safeguarded against water ingress and overheating. The mechanical seals enhance operational safety, and compliance with IS/IEC standards assures quality and reliability for extended service life.

FAQ's of Submersible Dewatering Pump:

Q: How is the submersible dewatering pump installed and supported on-site?

A: The pump is designed for vertical submersible installation and support. Our team offers on-site installation and comprehensive support services throughout India, ensuring smooth commissioning, optimal performance, and post-installation maintenance.

Q: What makes the motor protection system effective for continuous usage?

A: An inbuilt thermal protector monitors the motor's temperature, automatically shutting off the pump to prevent overheating, thus enhancing safety and prolonging service life, especially during extended operation in demanding conditions.

Q: When should this pump be used, and what types of applications is it best suited for?

A: This pump is ideal for dewatering construction sites, mines, pits, basements, or flood-affected areas where rapid and reliable water removal is critical. Its robust design allows continuous submersion up to 20 meters, making it suitable for varied harsh environments.

Q: Where can I use this pump, considering its material and protection features?

A: Made from corrosion-resistant stainless steel and cast iron, coupled with an IP68 protection class and double-sealed ball bearings, the pump can be safely used in construction, mining, and municipal applications where durability against water and debris is needed.

Q: What are the key steps in the operation process of this pump?

A: After proper installation, the pump can be operated manually or automatically using its control system. Depending on the specific need, you can select DOL or Star-Delta starting methods. Routine inspection and scheduled maintenance ensure long-lasting performance.

Q: How does the pump's self-priming and bottom suction design benefit users?

A: The self-priming (submersible) feature removes the need for external priming, while the bottom suction design ensures maximum water removal, even from low-lying areas, resulting in efficient dewatering and minimized downtime.

Q: What are the advantages of using this pump in terms of efficiency and noise levels?

A: Featuring high efficiency, lightweight portability, and a noise level of less than 70 dB(A), this pump ensures effective operation, ease of installation, and minimal disturbance, making it suitable for noise-sensitive urban and residential environments.
