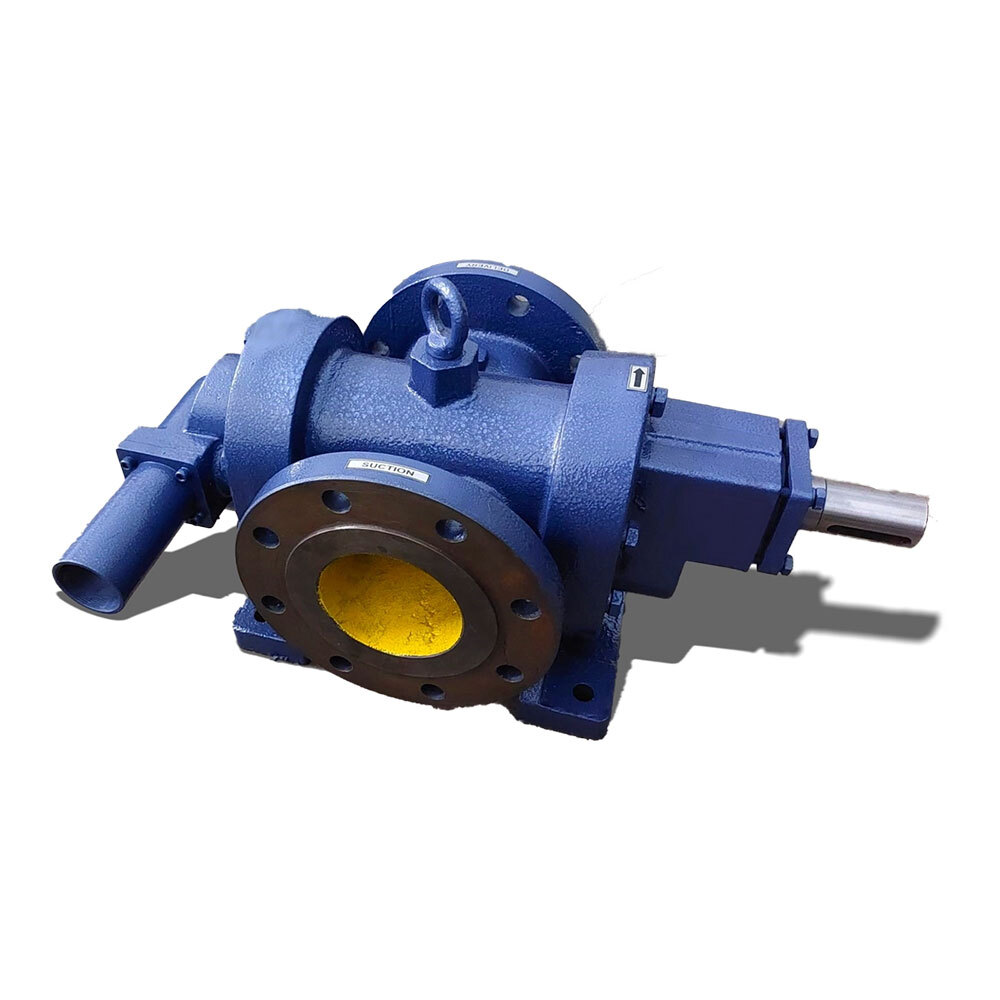

SVRN-SVRB Series
15500 INR/Piece
Product Details:
- Features Heavy Duty, Continuous Operation, High Efficiency
- Control System Manual / Automatic
- Speed Up to 1440 RPM
- Inlet/Outlet 1 to 8
- Voltage 230V / 415V
- Frequency 50 Hz / 60 Hz
- Noise Level Low
- Click to View more
X
SVRN-SVRB Series Price And Quantity
- 1 Piece
- 15500 INR/Piece
SVRN-SVRB Series Product Specifications
- Up to 10 bar
- 50 Hz / 60 Hz
- Low
- Rotary Vane
- Base Mounted
- Up to 10 bar
- Cast Iron / Steel / Stainless Steel
- Up to 100 m3/hr
- Rotary Vane
- -10C to 80C
- IS / ISO
- As per Model
- Up to 10 bar
- 7 Meter
- Positive Displacement
- Rotary Vane Pump
- Other
- Heavy Duty, Continuous Operation, High Efficiency
- Mechanical Seal / Gland Packing
- Other
- Manual / Automatic
- Self-Priming
- Up to 1440 RPM
- 0.5 HP to 30 HP
- Up to 100 m3/hr
- 1 to 8
- 230V / 415V
- Self Lubricated / Grease Cup
- Inline / Side Suction
- Easily Available
- EN-8 / Stainless Steel
- Up to 1,00,000 SSU
- Clockwise (CW) / Anti-Clockwise (CCW)
SVRN-SVRB Series Trade Information
- 10 Piece Per Week
- 7 Days
Product Description
- High Efficiency
- Heavy Duty
- Adaptability
- Less Noise
Fearture
- Heavy duty foot mounting type Gear Pump designed for continuous application.
- Working Pressure upto 10 Bar.
- Size from 1/2" to 6" to handle flow from 10LPM to 2080LPM.
- Can handle maximum viscosity 25000CST.
- Herringbone rotor design eliminate side thrust.
- Modified tooth profile enhance tooth life.
- Optionally steam jacket available.
- Double helical gear design prevent axial load.
- Low leakage path by design improve volumetric efficiency.
- Shorter bearing span reduces bending effect.
Application
- Power & Gas Plant
- Steel Plant
- Cement Plant
- Petroleum Industries
- Refineries
- Pumping Station
Versatile Performance Across Applications
The SVRN-SVRB Series is optimized to handle a spectrum of fluids, including those with viscosities up to 1,00,000 SSU, making it suitable for industries like chemicals, oil, and food processing. Its rotary vane design supports self-priming, positive displacement, and is capable of continuous operation with high efficiency and minimal noise.
Durable and Adaptable Construction
Engineered with heavy-duty materials such as cast iron, steel, or stainless steel, the SVRN-SVRB Series offers options for both mechanical seal and gland packing. It is compatible with multiple shaft materials and lubrication systems, and supports various power and voltage needs, reinforcing its suitability for Indian industrial environments.
Effortless Maintenance and Wide Availability
The pump's replacement parts are easily sourced, streamlining routine maintenance and repairs. Its compliance with IS/ISO standards and modular structure guarantee reliability and serviceability. With base mounting and flexible port positions, it is simple to install or retrofit into existing systems.
FAQ's of SVRN-SVRB Series:
Q: How does the SVRN-SVRB Series Rotary Vane Pump manage high-viscosity fluids?
A: The SVRN-SVRB Series is designed to efficiently handle fluids with viscosities up to 1,00,000 SSU due to its robust rotary vane mechanism. This positive displacement design ensures consistent flow rates even with thick or heavy liquids.Q: What installation options are available for the SVRN-SVRB Series pump?
A: This pump supports both inline and side suction port configurations and is base-mounted, making it adaptable for a wide range of industrial setups. It's suitable for new installations as well as system upgrades.Q: When is it necessary to perform maintenance, and how easy is it to find replacement parts?
A: Regular maintenance can be performed based on the application's operating conditions, but thanks to the pump's design, all replacement parts are easily available, minimizing downtime and simplifying service procedures.Q: Where can the SVRN-SVRB Series be used within industry sectors?
A: This series is ideal for use in sectors such as oil and gas, chemicals, food processing, and other industries requiring reliable, continuous transfer of a variety of fluids. Its adaptability to different viscosities and operational conditions makes it widely applicable.Q: What process features enhance energy efficiency and operational safety?
A: The pump incorporates low-noise operation, high efficiency, and supports both manual and automatic control systems. Its robust sealing options (mechanical seal/gland packing) prevent leaks, while self-priming capabilities support safe and easy start-up.Q: How does automatic control improve SVRN-SVRB pump operation?
A: Automatic control allows the pump to adjust to varying process demands without manual intervention. This improves overall system efficiency, reduces the likelihood of human error, and ensures smooth continuous operation.Q: What are the key benefits of choosing the SVRN-SVRB Series Rotary Vane Pump?
A: Major benefits include its ability to handle a broad range of fluid viscosities, continuous heavy-duty operation, compliance with IS/ISO standards, low noise levels, high efficiency, ease of maintenance, and long-term reliability in demanding industrial environments.Tell us about your requirement
