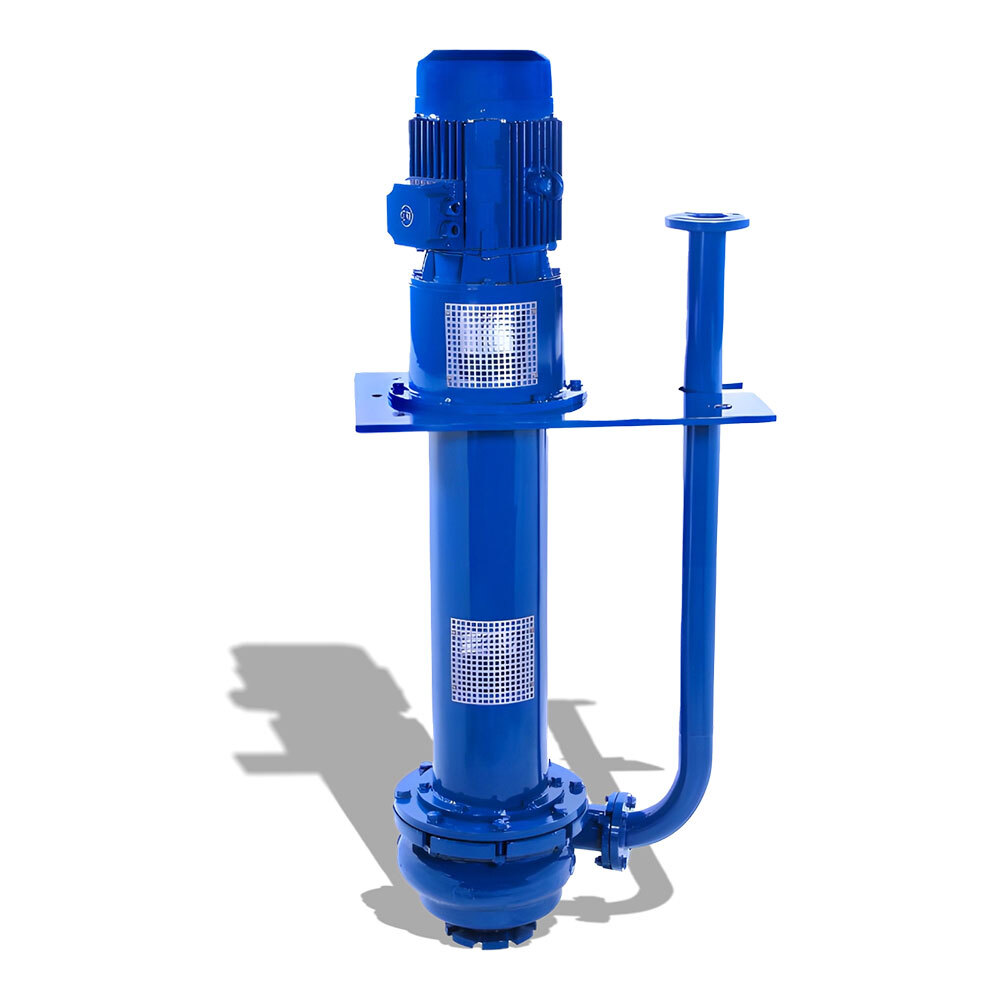

Vertical Sump Pump

Name: Vertical Sump Pump
Brand: RELIABLE ENGINEERS
Price: 35000 INR
Availability: InStock

35000 INR/Piece

Get a Price/Quote

Product Details:

Noise Level Below 75 dB
Max Suction Up to 6 meters
Discharge Pressure Up to 6 bar
Fuel Tank Capacity Not applicable (Electric powered)
Mounting Type Vertical, baseplate mounted
Frequency 50 Hz / 60 Hz
Caliber 25mm to 150mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Vertical Sump Pump Price And Quantity

Price 35000 INR/Piece
Minimum Order Quantity 1 Piece

Vertical Sump Pump Product Specifications

Application Other
Working Temperature Up to 70C
Seals Type Mechanical Seal / Gland Packing
Suction Type Vertical sump, submerged suction
Speed 1450/2900 RPM (depending on power supply)
Theory Centrifugal Pump
Control System Manual/Automatic (optional with float switch)
Features Robust Design, Corrosion Resistance, Low Maintenance
Flow Rate 10 to 250 m3/h (varies by model)
Pump Type Vertical Sump Pump
Voltage 220V/380V/415V (customizable)
Head Size 5 to 45 meters
Inlet/Outlet Flanged, as per pump size
Usage Other
Material Cast Iron / Stainless Steel / Alloy (optional)
Capacity 10 to 250 m3/h
Fuel Tank Capacity Not applicable (Electric powered)
Discharge Pressure Up to 6 bar
Mounting Type Vertical, baseplate mounted
Frequency 50 Hz / 60 Hz
Caliber 25mm to 150mm
Pressure Up to 6 bar
Priming Self-priming not required, submersible sump type
Structure Vertical single-stage
Standard As per ISO / DIN standards
Fuel Type Electric Driven
Noise Level Below 75 dB
Max Suction Up to 6 meters
Power 0.75 kW to 75 kW depending on model

Minimum Liquid Level Depends on sump and pump size, typically 100 mm above impeller
Protection Class IP55 / IP65 for motor
Impeller Type Open/Vortex/Semi-open depending on application
Surface Coating Epoxy painted for corrosion resistance
Installation Depth Up to 5 meters below pump base
Shaft Length Up to 5 meters (can be customized)
Bearing Lubrication Grease lubricated bearings
Motor Phase Three phase (single phase available on request)
Ambient Temperature -10C to +50C

Vertical Sump Pump Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

Feature

Vertical pumps take little space in plan since the liquid is led away to the axis of shaft.
The impeller is submerged, so pump does not require to be primed and is always ready for use.
The positive suction condition also prevents the cavitation in the pump and pitting in impeller and diffuser.
Due to positive head at suction the pump gives its rated performance as well as high overall efficiency whereas in horizontal pumps due to losses in suction line, foot valve etc. the rated performance of the pumps is not achieved

Specification

CAPACITY	up to 325 m3/hr
HEAD	up to 60 mtr
PRESSURE	up to 6kg/cm2
TEMPERATURE	30 to 120 c
SUMP DEPTH	1 meter to 3 meter

Robust and Versatile Performance

This vertical sump pump is capable of handling liquid capacities from 10 to 250 m3/h and heads up to 45 meters. Backed by a motor power of 0.75 kW to 75 kW, it is suitable for a variety of industrial and commercial applications, with a protective epoxy coating for enhanced durability against corrosion.

Customizable and Reliable Design

With a maximum installation depth of 5 meters and multiple shaft and impeller options, the pump can be tailored to diverse operational needs. It accommodates both single and three-phase power, and features adjustable voltage configurations, making it ideal for installations across different sites.

Low Maintenance and Safety Standards

The sump pump features grease-lubricated bearings and an epoxy-coated exterior, minimizing wear and reducing routine service needs. It conforms to ISO and DIN standards, has IP55/IP65-protected motors for added safety, and maintains a noise level below 75 dB ensuring a safer work environment.

FAQ's of Vertical Sump Pump:

Q: How is the vertical sump pump installed and where can it be used?

A: The pump is baseplate mounted and installed vertically inside sumps or pits, with an installation depth of up to 5 meters below the pump base. It is suitable for industrial facilities, wastewater treatment plants, and other applications requiring submerged fluid transfer.

Q: What customization options are available for shaft length and motor configuration?

A: Shaft lengths can be specified up to 5 meters to match sump depth, and motors can be configured for single or three-phase operation with customizable voltage options (220V/380V/415V) to meet site requirements.

Q: What types of liquids and conditions can this pump handle?

A: The pump is constructed from corrosion-resistant materials (cast iron, stainless steel, or alloys) and can handle liquids up to 70C. It works in ambient temperatures ranging from -10C to +50C and capacities from 10 to 250 m3/h, making it suitable for a wide range of industrial processes.

Q: What are the main benefits of the pump's design and features?

A: Robust construction, corrosion resistance due to epoxy painting, and low maintenance through grease-lubricated bearings are key benefits. The vertical design saves floor space, and the pump's low noise operation enhances workplace safety and comfort.

Q: When is it necessary to use automatic control with a float switch?

A: Automatic operation is recommended when liquid levels in the sump fluctuate, as a float switch enables the pump to activate as needed, providing protection against dry running and ensuring efficient usage.

Q: What is the process for selecting the right impeller type?

A: The impeller type-open, vortex, or semi-open-is chosen based on the nature of the liquid (clean, solid-laden, or slurry) to optimize hydraulic performance and minimize clogging. Our team can assist in determining the best option for your application.
